Question: The forearm and biceps support the 3 . 5 - kg load at A If C can be assumed as a pin support, determine the

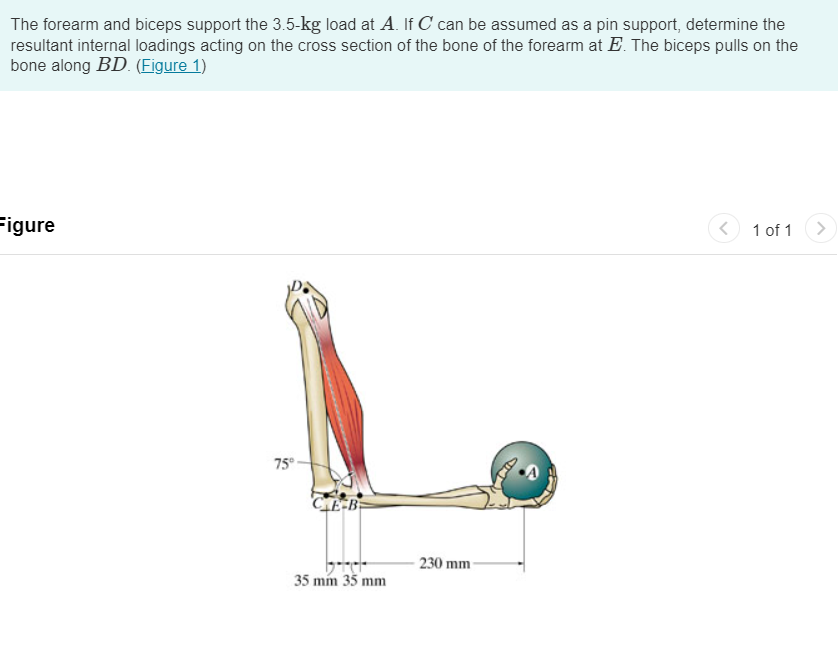

The forearm and biceps support the 3.5-kg load at A If C can be assumed as a pin support, determine the resultant internal loadings acting on the cross section of the bone of the forearm at E. The biceps pulls on the bone along BD.
a. determine the normal force acting on the cross section of the bone at E.
b. Determine the resultant internal shear force acting on the cross section of the bone at E
c. Determine the resultant internal bending moment acting on the cross section of the bone at E
The forearm and biceps support the 3 . 5 - kg

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
