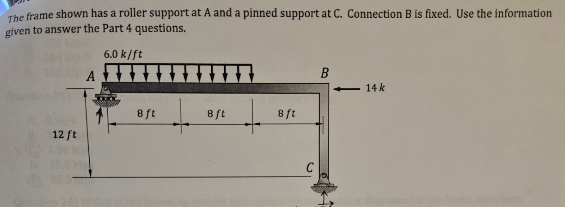

The frame shown has a roller support at A and a pinned support at C $.$ Connection B is fixed. Use the information

given to answer the Part $4$ questions.

Find:

$-$max magnitude shear force in member AB

$-$max magnitude internal moment in member AB

$-$max axial force in member AB $(-=$ compression, $+=$ tension$)$

$-$max magnitude shear force in member BC

$-$max magnitude internal moment in member BC

$-$max axial force in member BC

$-$draw moment diagram for the frame members
