Question: The framing plan represents a typical floor in a low - rise office building. The floor decking spans in a direction from line 1 toward

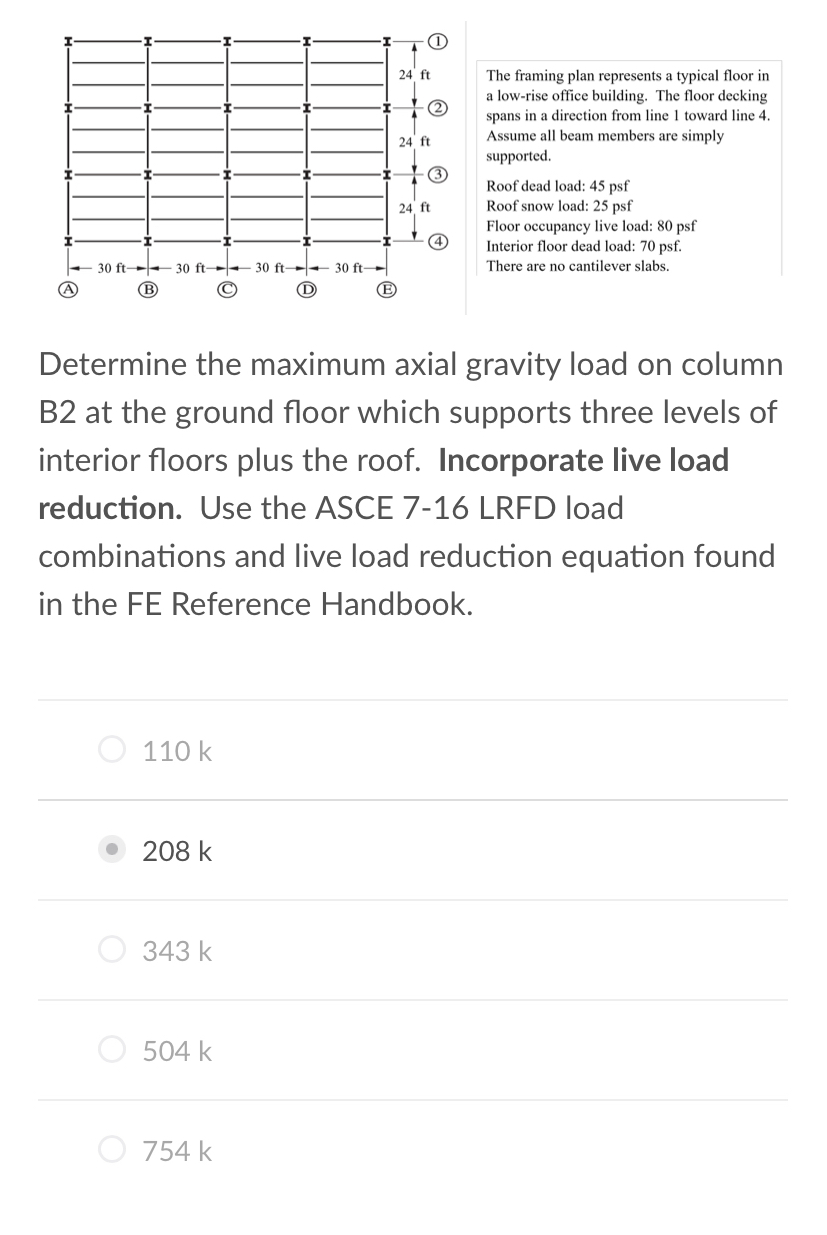

The framing plan represents a typical floor in a low-rise office building. The floor decking spans in a direction from line 1 toward line 4 Assume all beam members are simply supported.
Roof dead load: 45psf
Roof snow load: 25 psf
Floor occupancy live load: 80 psf
Interior floor dead load: 70 psf.
There are no cantilever slabs.
Determine the maximum axial gravity load on column B2 at the ground floor which supports three levels of interior floors plus the roof. Incorporate live load reduction. Use the ASCE 7-16 LRFD load combinations and live load reduction equation found in the FE Reference Handbook.
110k
208k
343k
504k
754k
The framing plan represents a typical floor in a
