Question: The function to be implemented is: a b c d + a b c d + a b c d Implement this function using the

The function to be implemented is: abcd+abcd+abcd

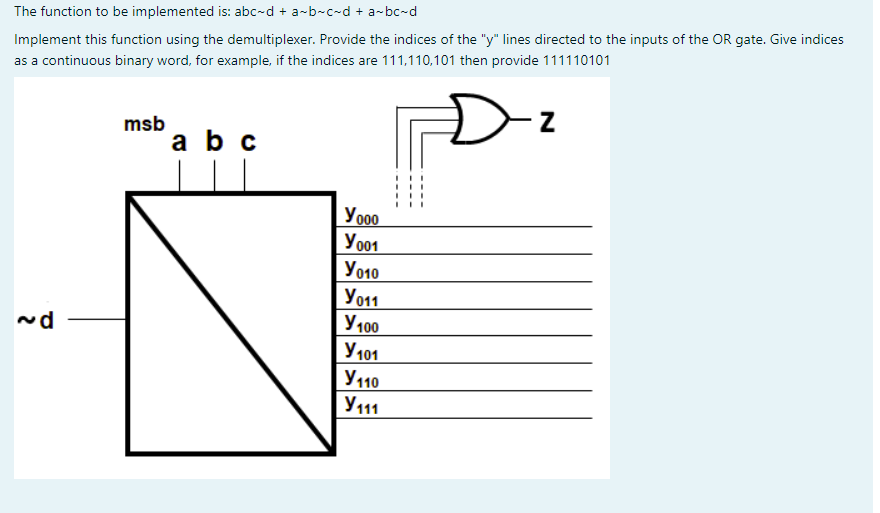

Implement this function using the demultiplexer. Provide the indices of the "y" lines directed to the inputs of the OR gate. Give indices
as a continuous binary word, for example, if the indices are 111,110,101 then provide 111110101
The function to be implemented is: abcd+abcd+abcd Implement this function using

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
