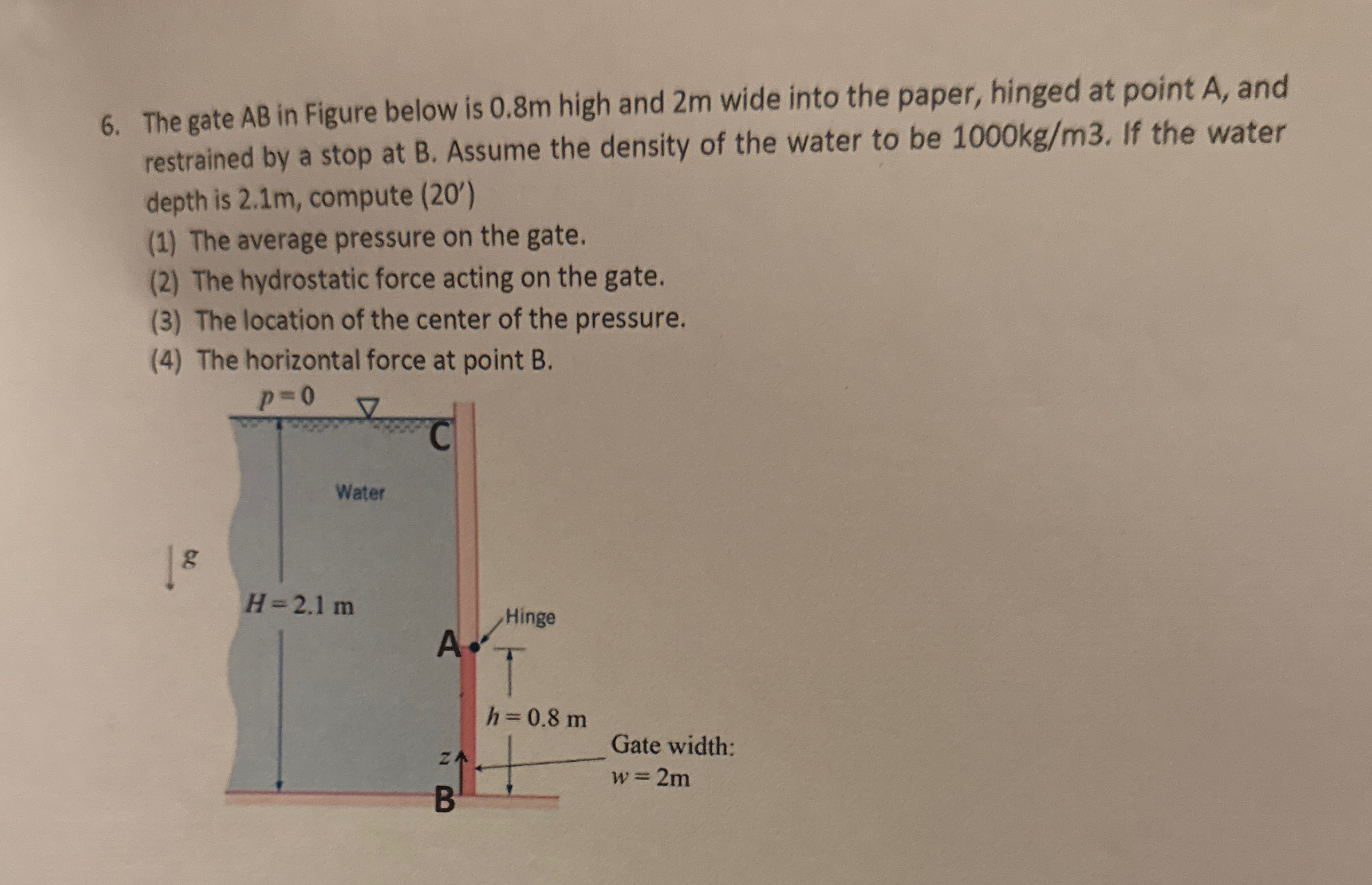

Question: The gate A B in Figure below is 0 . 8 m high and 2 m wide into the paper, hinged at point A ,

The gate AB in Figure below is 0.8 m high and 2 m wide into the paper, hinged at point A, and restrained by a stop at B. Assume the density of the water to be 1000kgm3. If the water depth is 2.1 m , compute (20')
(1) The average pressure on the gate.
(2) The hydrostatic force acting on the gate.
(3) The location of the center of the pressure.
(4) The horizontal force at point B.
