Question: The gate shown in the figure below is hinged @ point B and rests against a smooth wall @ A . Compute the force on

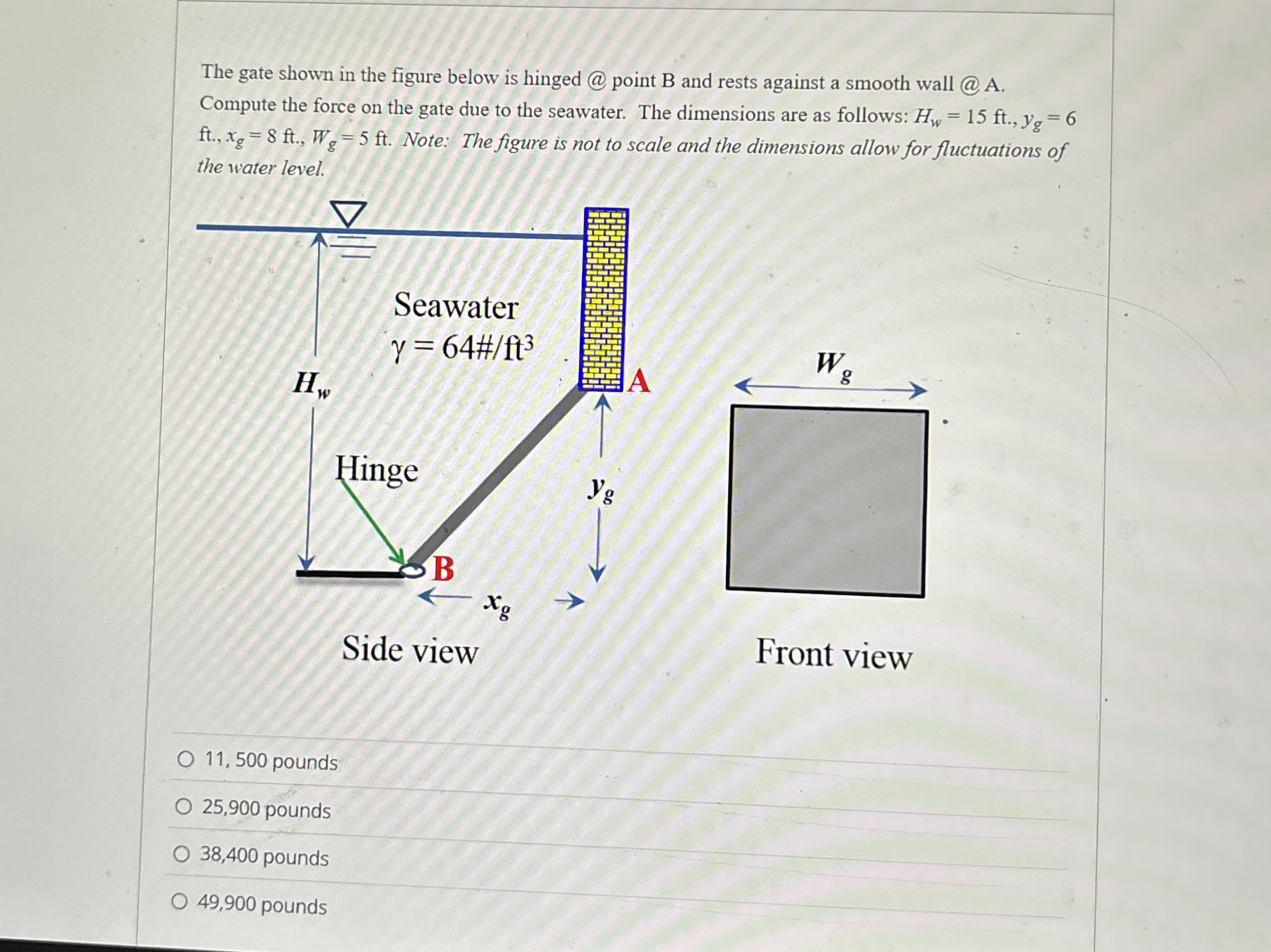

The gate shown in the figure below is hinged @ point B and rests against a smooth wall @ A.
Compute the force on the gate due to the seawater. The dimensions are as follows: Hw=15ft.,yg=6
ft.,xg=8ft.,Wg=5ft. Note: The figure is not to scale and the dimensions allow for fluctuations of
the water level.
Front view
11,500 pounds
25,900 pounds
38,400 pounds
49,900 pounds
The gate shown in the figure below is hinged @

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
