Question: The horizontal x - axis is drawn through the centroid C of the area shown, and it divides the area into two component areas A

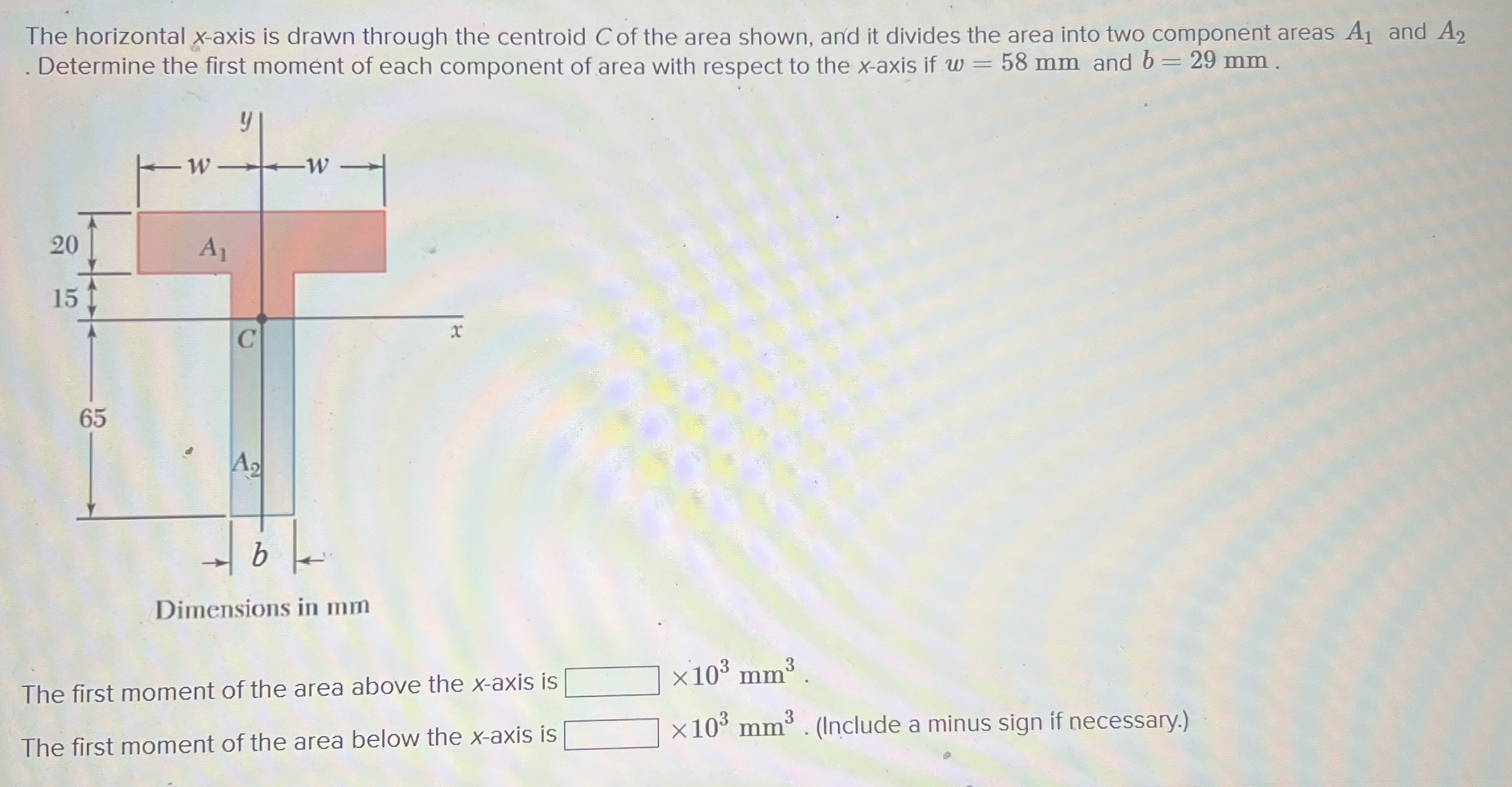

The horizontal x-axis is drawn through the centroid C of the area shown, and it divides the area into two component areas A1 and A2. Determine the first moment of each component of area with respect to the x-axis if w=58mm and b=29mm.
Dimensions in mm
The first moment of the area above the x-axis is 103mm3.
The first moment of the area below the x-axis is 103mm3.(Include a minus sign if necessary.)
The horizontal x - axis is drawn through the
