Question: The inflow hydrograph to a dredged rectangular channel is given below. The channel has a width of 1 0 0 ft , a bottom slope

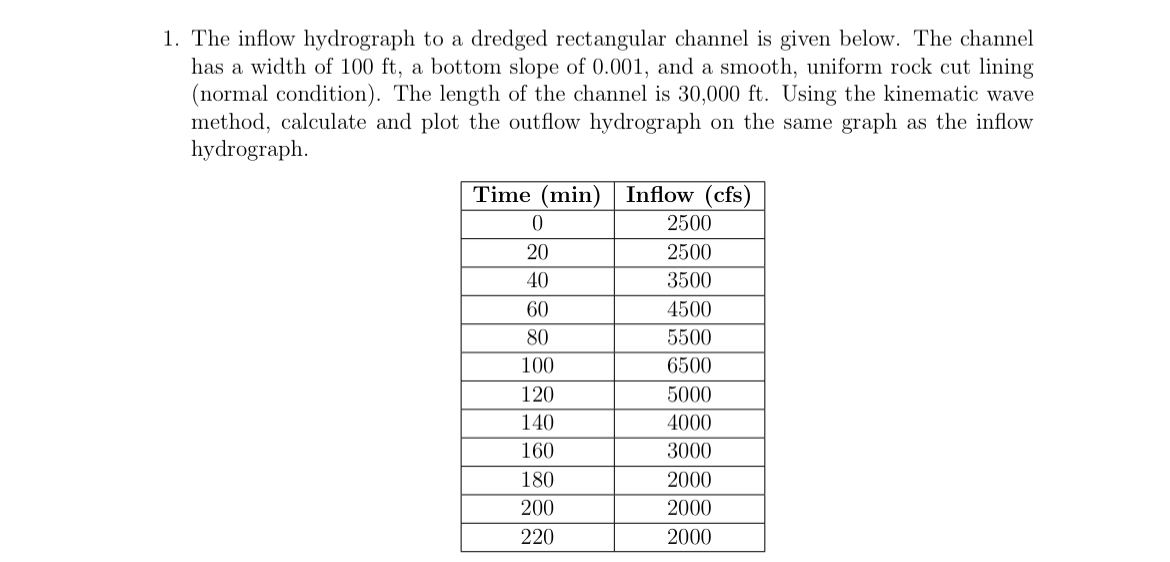

The inflow hydrograph to a dredged rectangular channel is given below. The channel has a width of 100 ft , a bottom slope of 0.001, and a smooth, uniform rock cut lining (normal condition). The length of the channel is 30,000ft. Using the kinematic wave method, calculate and plot the outflow hydrograph on the same graph as the inflow hydrograph.
\table[[Time (min),Inflow (cfs)],[0,2500],[20,2500],[40,3500],[60,4500],[80,5500],[100,6500],[120,5000],[140,4000],[160,3000],[180,2000],[200,2000],[220,2000]]
