Question: The inflow hydrograph to a rectangular channel is given below. The channel has a width of 5 0 f t , a bottom slope of

The inflow hydrograph to a rectangular channel is given below. The channel has a width of 50ft, a bottom slope of 0.0025, and a concrete lining with trowel finish (normal condition). The length of the channel is 32,000ft. Using the kinematic wave method, calculate and plot the outflow hydrograph on the same graph as the inflow hydrograph.
\table[[Time (hr),Inflow (cfs)],[0,400],[1,800],[2,1,600],[3,2,500],[4,3,300],[5,2,800],[6,2,300],[7,1,800],[8,1,300],[9,800],[10,300]]

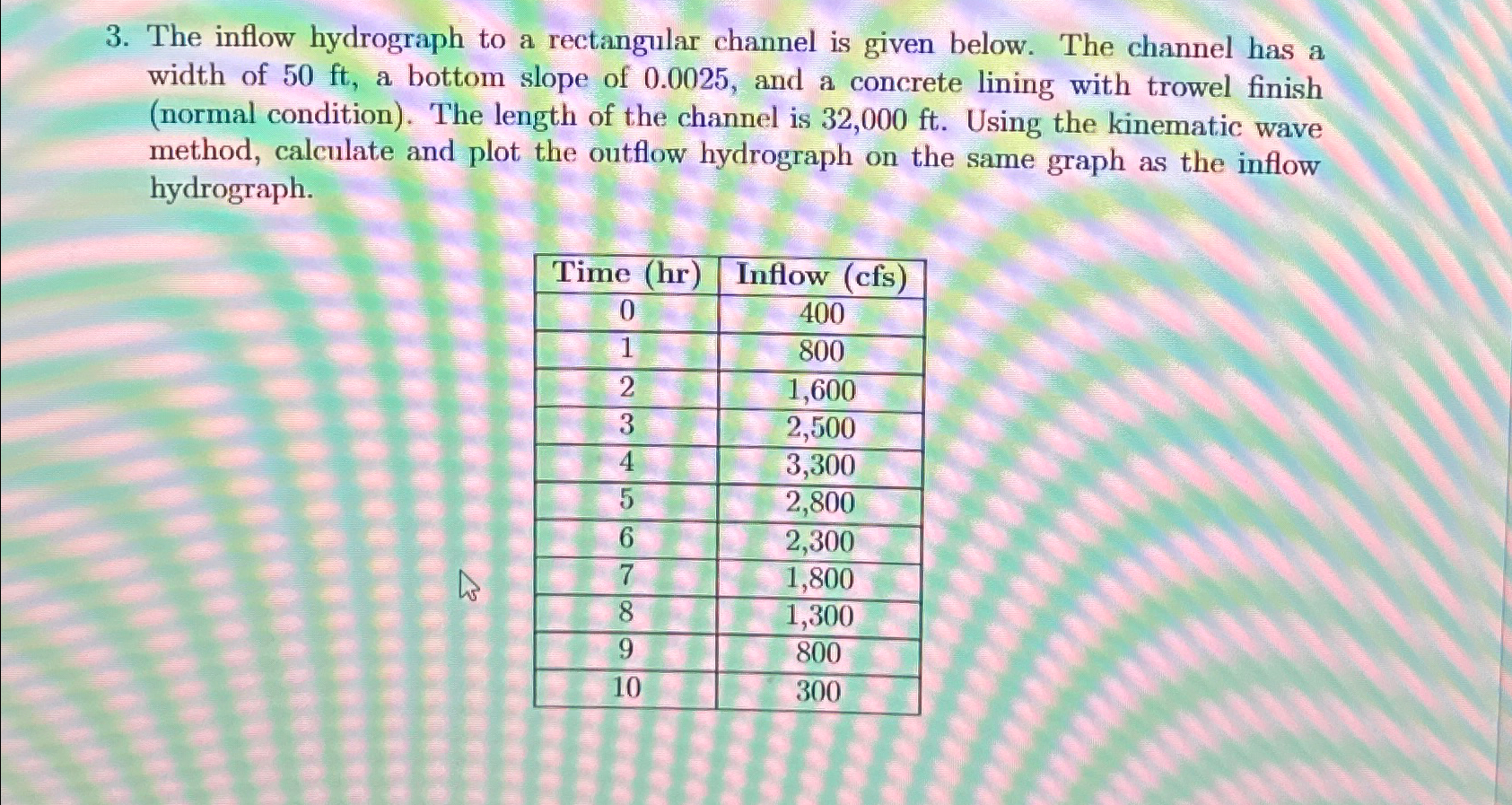

The inflow hydrograph to a rectangular channel is
