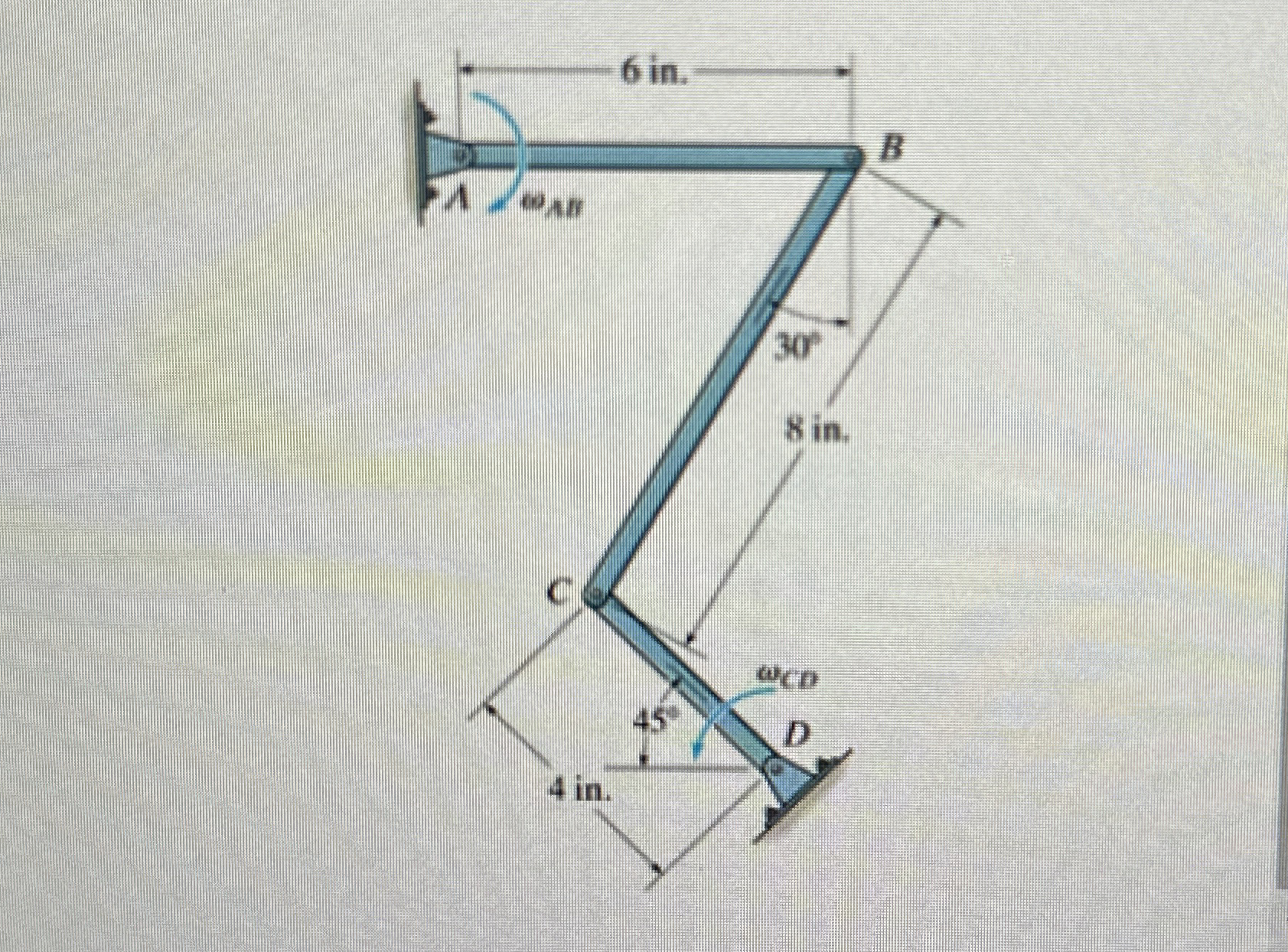

Question: The link A B is rotating at A B = 1 . 8 r a d s , ( Figure 1 ) Determine the angular

The link

A B

is rotating at

_{A B} = 1.8 r a \frac{d}{s}, (

Figure

1)

Determine the angular velocity of link

C D

at the instant shown measured counterclockwise.

Express your answer using three significant figures. Enter positive value if the angular velocity is counterclockwise and negathe value if the angular velocity is clockwise.

Previous Answers

Request Answer

Incorrect; Try Again;

3

attempts remaining

Provide Feedback

The link A B is rotating at A B = 1 . 8 r a d s ,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

1. Inertial velocity and inertial acceleration (8 pts) The disk shown in Fig. 1 spins about its own central axis at 1200 rpm while the entire system rotates about the vertical axis (which is fixed in...

Reference 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 This question has multiple versions. Read carefully! A. B. A bike wheel, initially rotating counter-clockwise, experiences a constant counter- clockwise...

The accelerations of points A and B of link 2, which is rotating clockwise, are as given. Determine the angular velocity, the angular acceleration, and the acceleration of midpoint C of link 2. A C B...

Consider the double-slider linkage in the posture given in Prob. 3.8. Point B moves with a constant velocity VB = 40 m/s to the left, as shown in the figure. The angular velocity and angular...

The disk of weight W is rotating about pin A in the vertical plane with an angular velocity 1 when = 0 . Determine its angular velocity at the instant shown, = 90 deg. Also, compute the...

Part A Review The smooth surface of the vertical cam is defined in part by the curve r = (0.2 cos 00.3) m. The forked rod is rotating with an angular acceleration of # = 2 rad/s as shown in (Figure...

Disk C R = 1 ft 3 ft C A x 2 rad/s B \60 The disk C is rolling to the right with an angular velocity of 2 rad/s. The bar AB connects the disk to collar through pins at A and B. For the configuration...

Dynamics of Particles and Rigid Bodies Spring 2023 is the position of P expressed in terms of the arc length, and c is a constant. Extra Credit. [10 pts] The particle P is traveling on a circular...

A ball of radius r rolls inside A a hemispherical shell of radius R. It is released from rest from point A as shown in figure. The angular velocity of the ball in position B about the centre of the...
