Question: The machine part ABC is supported by a frictionless hinge at B and a 1 0 wedge at C . The coefficient of static friction

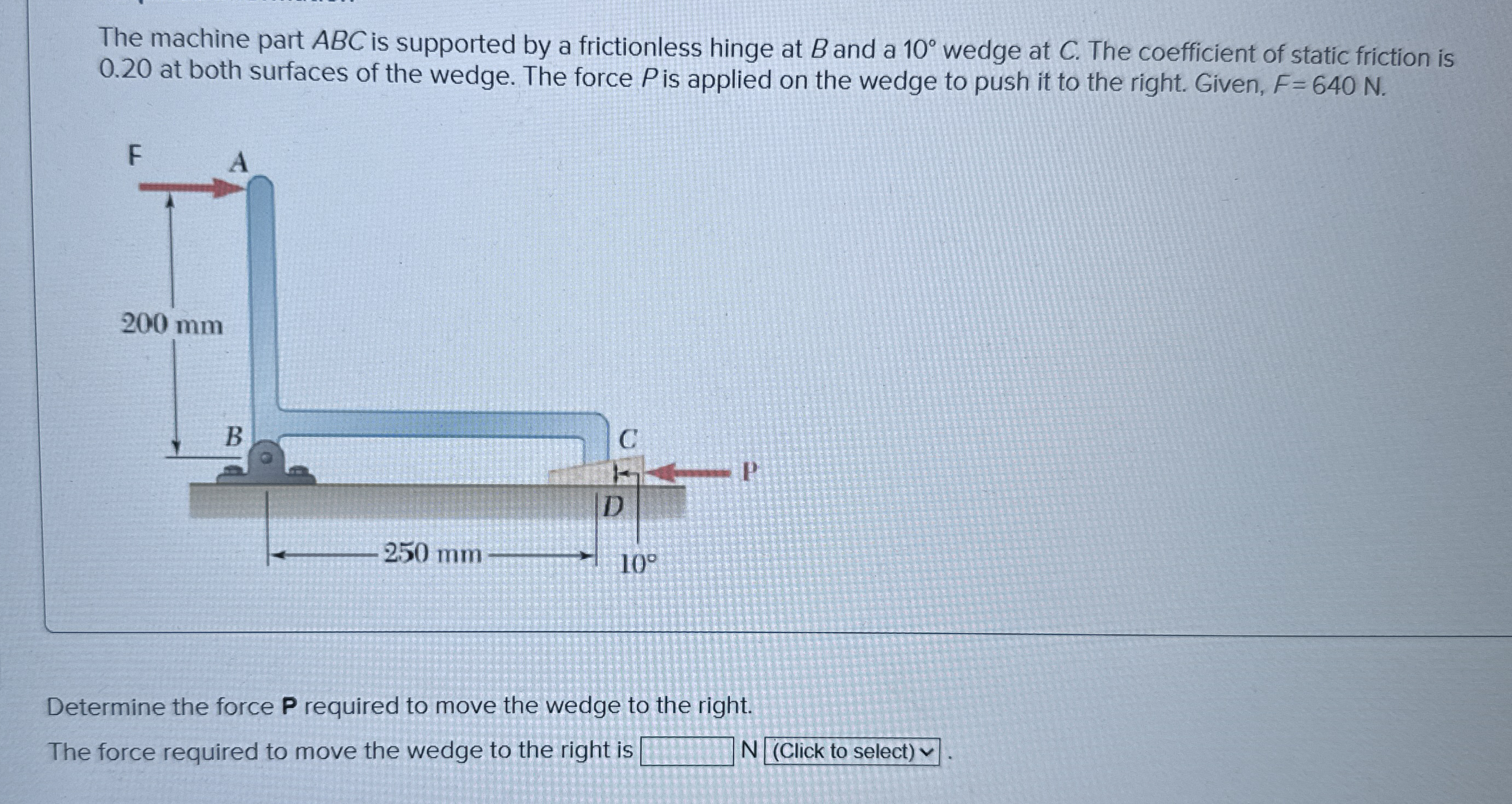

The machine part ABC is supported by a frictionless hinge at B and a 10 wedge at C. The coefficient of static friction is 0.20 at both surfaces of the wedge. The force P is applied on the wedge to push it to the right. Given, F=640N.
Determine the force P required to move the wedge to the right.
The force required to move the wedge to the right is N (Click to select)vv.
The machine part ABC is supported by a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
