Question: The one that is solved in chegg is wrong, please double check your work, thanks! For the two - bar truss shown in Figure, determine

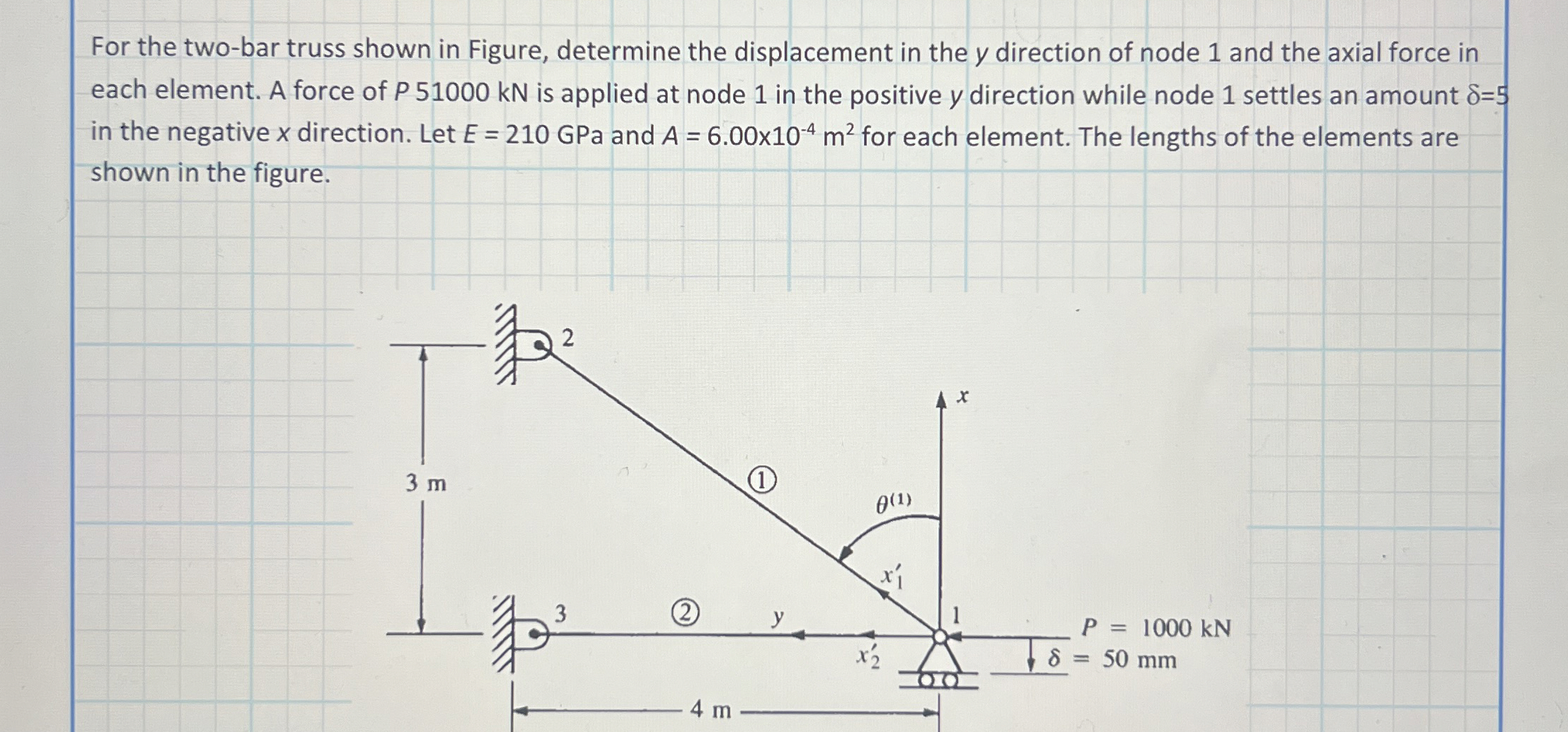

The one that is solved in chegg is wrong, please double check your work, thanks! For the two-bar truss shown in Figure, determine the displacement in the y direction of node 1 and the axial force in each element. A force of P51000kN is applied at node 1 in the positive y direction while node 1 settles an amount =5 in the negative x direction. Let E=210GPa and A=6.0010-4m2 for each element. The lengths of the elements are shown in the figure.
