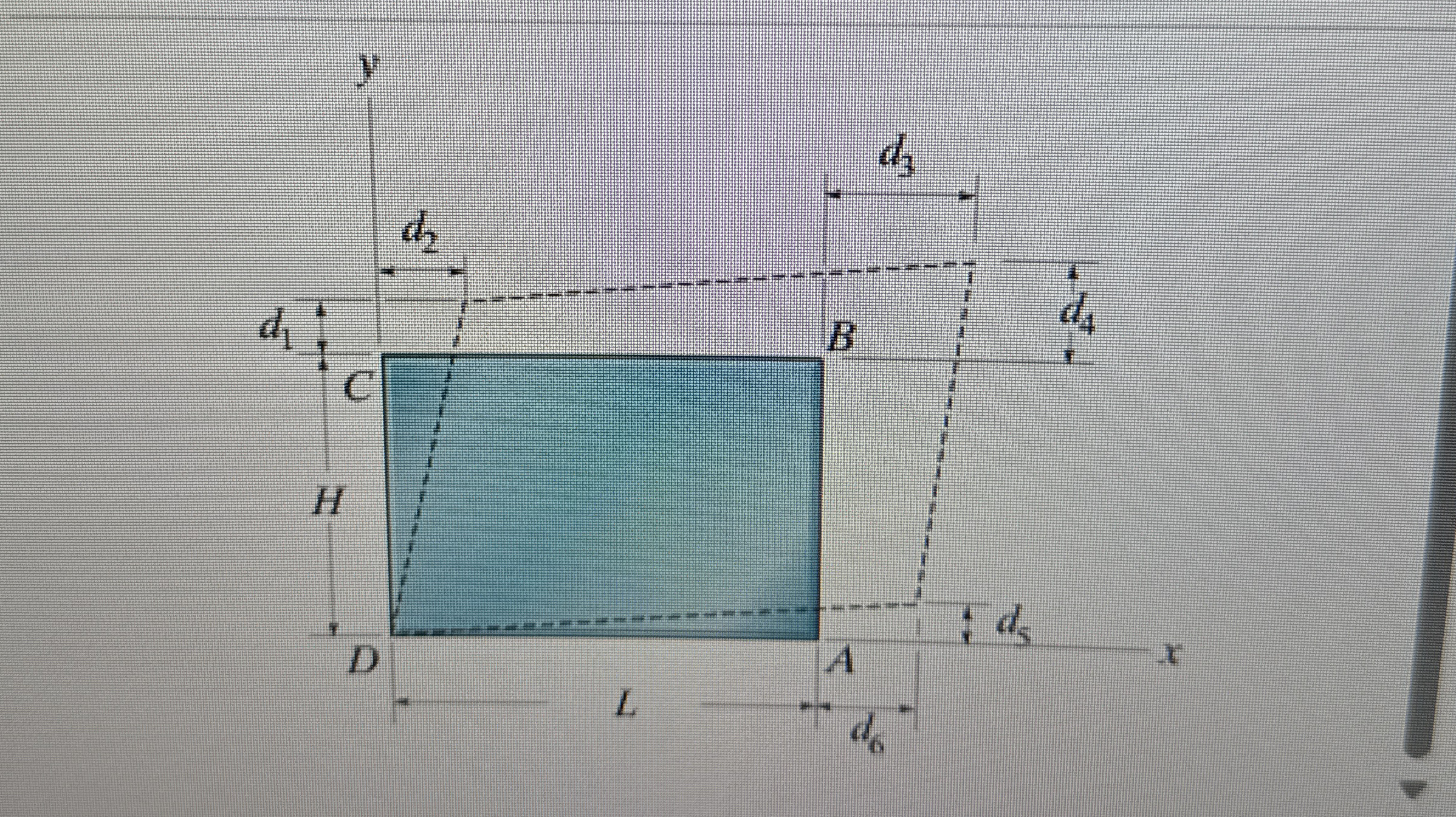

Question: The plastic distorts as shown by the dashed lines. ( Figure 1 ) The dimensions are L = 4 2 0 m m , H

The plastic distorts as shown by the dashed lines. (Figure 1) The
dimensions are L=420mm,H=310mm,d1=3mm,
d2=5mm,d3=11mm,d4=6mm,d5=2mm, and
d6=5mm.
Determine the shear strain xy at corner A
Determine the shear strain xy at corner B.
The plastic distorts as shown by the dashed

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
