The Question is about 'Queueing Theory model'.

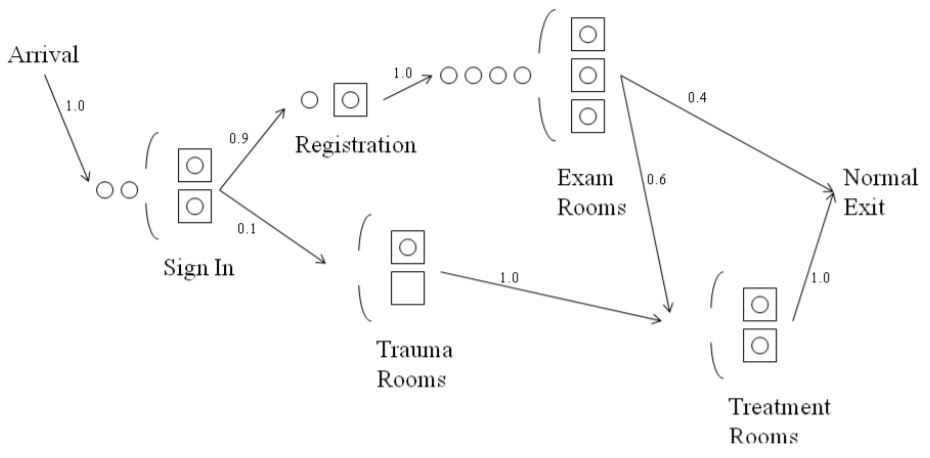

The Figure 2.1 is below

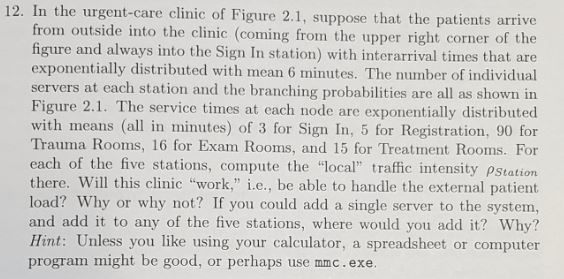

The problem is below

Arrival 1.0 0.4 1.0 0.9 Registration 0.6 Exam Rooms Normal Exit 0.1 Sign In 1.0 1.0 O Trauma Rooms Treatment Rooms 12. In the urgent-care clinic of Figure 2.1, suppose that the patients arrive from outside into the clinic (coming from the upper right corner of the figure and always into the Sign In station) with interarrival times that are exponentially distributed with mean 6 minutes. The number of individual servers at each station and the branching probabilities are all as shown in Figure 2.1. The service times at each node are exponentially distributed with means (all in minutes) of 3 for Sign In, 5 for Registration, 90 for Trauma Rooms, 16 for Exam Rooms, and 15 for Treatment Rooms. For each of the five stations, compute the "local" traffic intensity Pstation there. Will this clinic "work," i.e., be able to handle the external patient load? Why or why not? If you could add a single server to the system, and add it to any of the five stations, where would you add it? Why? Hint: Unless you like using your calculator, a spreadsheet or computer program might be good, or perhaps use mmc.exe
