Question: The question is attached below. Fill in the blanks: The uniform bar in the figure weighs 40 N and is subjected to the forces shown.

The question is attached below.

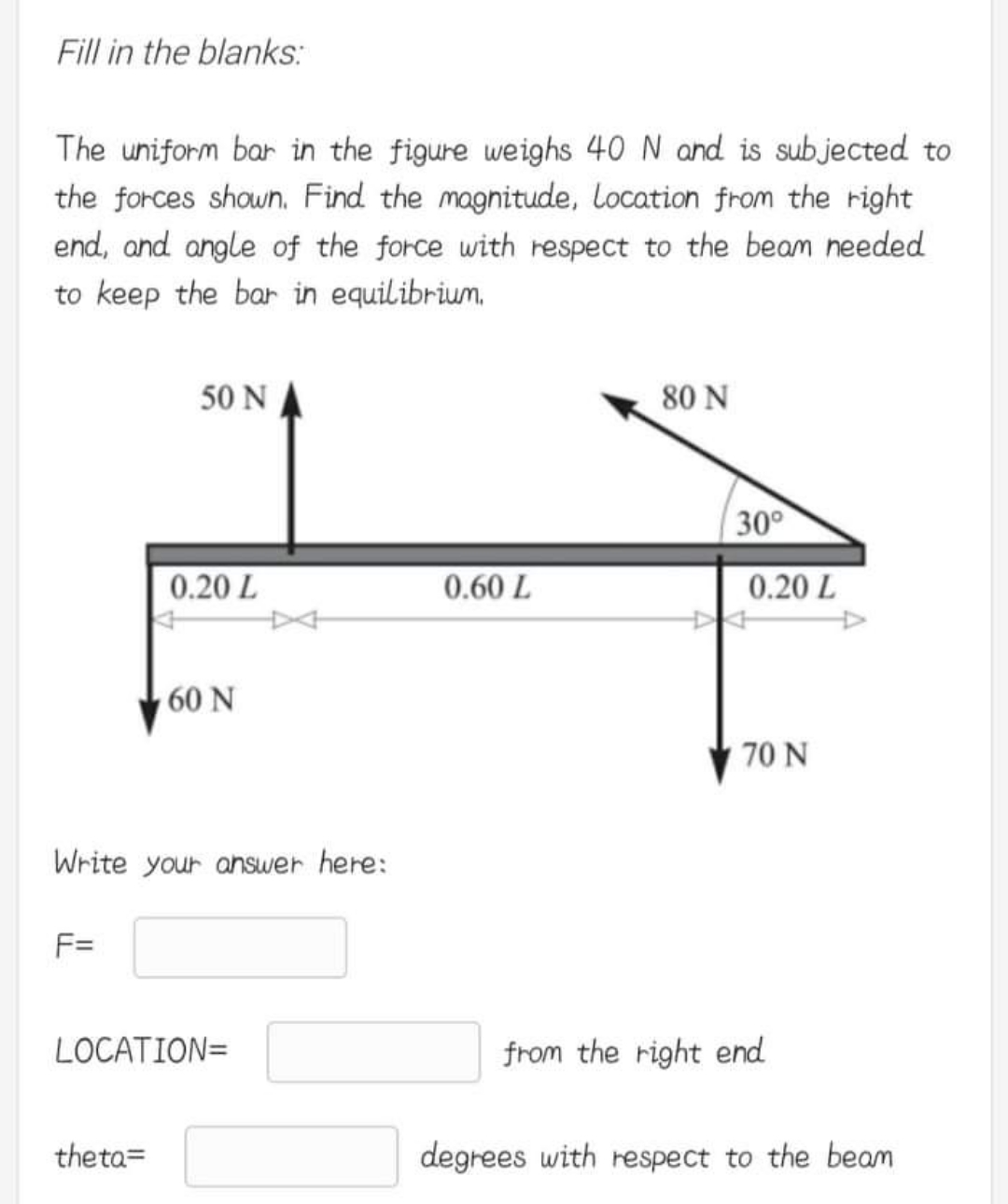

Fill in the blanks: The uniform bar in the figure weighs 40 N and is subjected to the forces shown. Find the magnitude, Location from the right end, and angle of the force with respect to the beam needed to keep the bar in equilibrium. 50 N 80 N 30 0.20 L 0.60 L 0.20 L 60 N 70 N Write your answer here: F= LOCATION= from the right end theto= degrees with respect to the beam

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
