Question: The rectangular loop shown in the following figure is coplanar with the long, straight wire carrying the current I = 1 5 A . Determine

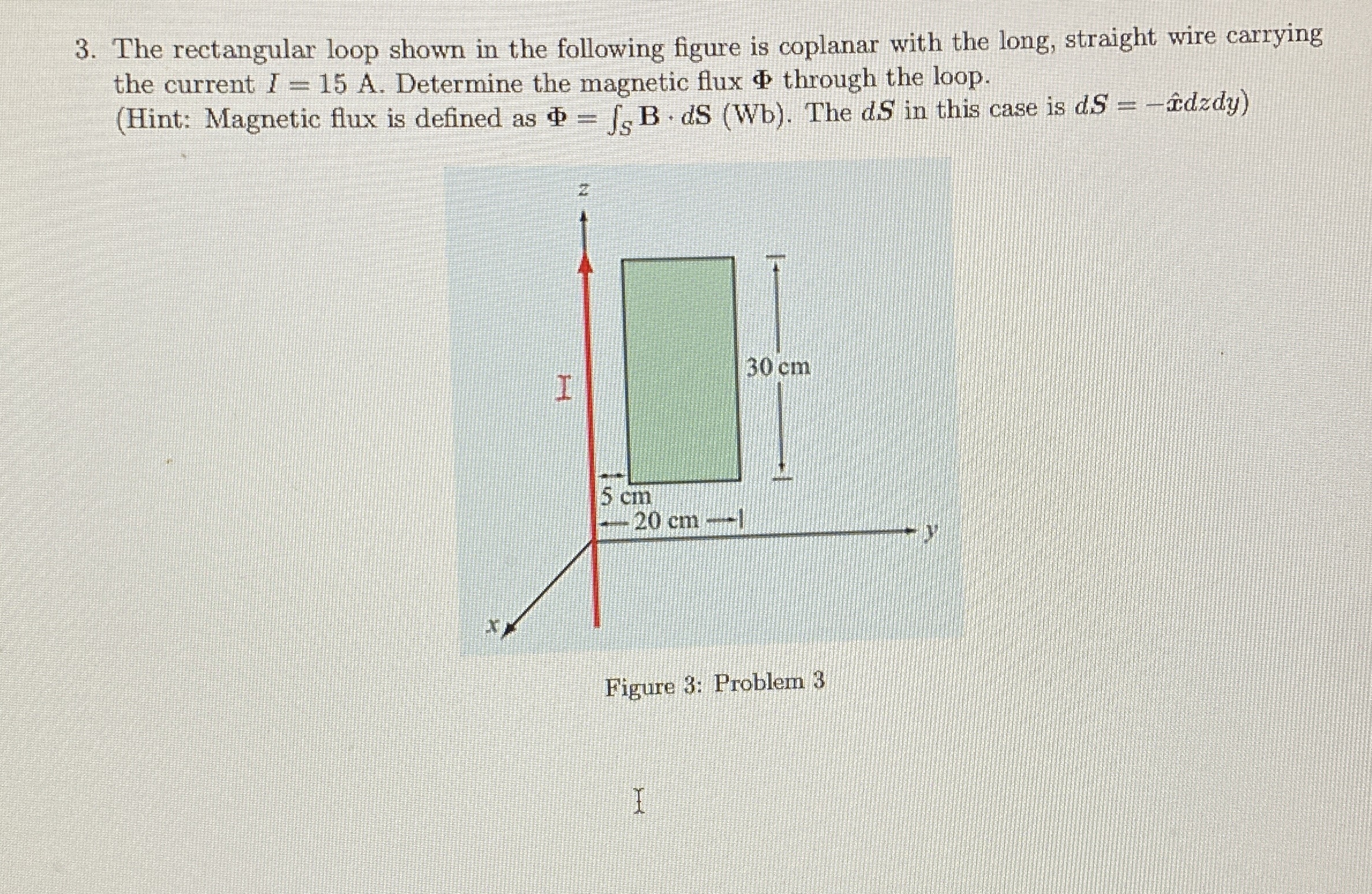

The rectangular loop shown in the following figure is coplanar with the long, straight wire carrying the current I=15A. Determine the magnetic flux through the loop.
(Hint: Magnetic flux is defined as =SB*dS(Wb). The dS in this case is dS=-hat(x)dzdy)
The rectangular loop shown in the following

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Electrical Engineering Questions!

Q:

The rectangular loop shown in Fig. 5-48 (P5.38) is coplanar with the long, straight wire carrying the current I = 20 A. Determine the magnetic flux through the loop 30cm 20A Scm - 20cm Figure P5.38:...
