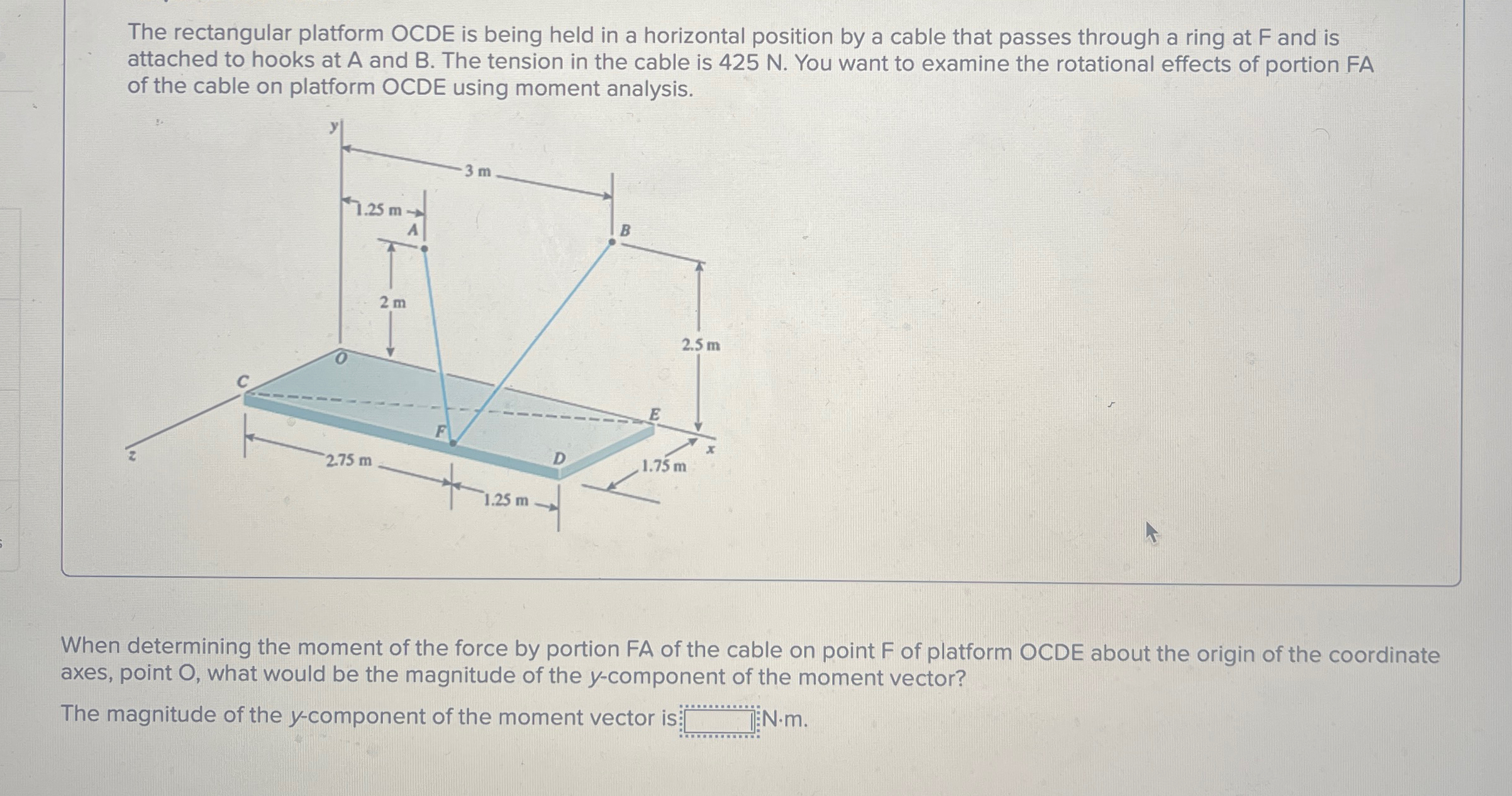

Question: The rectangular platform OCDE is being held in a horizontal position by a cable that passes through a ring at F and is attached to

The rectangular platform OCDE is being held in a horizontal position by a cable that passes through a ring at F and is
attached to hooks at A and B. The tension in the cable is 425 N . You want to examine the rotational effects of portion FA
of the cable on platform OCDE using moment analysis.
When determining the moment of the force by portion FA of the cable on point F of platform OCDE about the origin of the coordinate
axes, point O, what would be the magnitude of the y-component of the moment vector?
The magnitude of the y-component of the moment vector is
N*m.
The rectangular platform OCDE is being held in a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
