Question: The rigid bars AB and CD shown below are supported by pins at A and C and the two rods. Determine the maximum force P

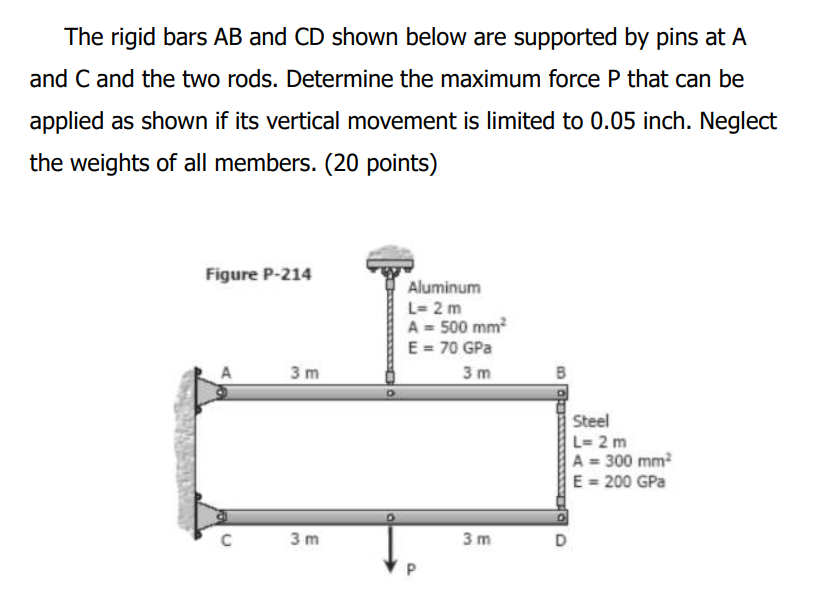

The rigid bars AB and CD shown below are supported by pins at A and C and the two rods. Determine the maximum force P that can be applied as shown if its vertical movement is limited to 0.05 inch. Neglect the weights of all members. (20 points) L-zm A-mmm' 35-20059

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Physics Questions!

The rigid bars AB and CD shown in Fig. P-214 are supported by pins at A and C and the two rods. Determine the maximum force P that can be applied as shown if its vertical movement is limited to 5 mm....

425. The assembly consists of two rigid bars that are originally horizontal. They are supported by pins and 0.25-in.-diameter A-36 steel rods. If the vertical load of 5 kip is applied to the bottom...

The assembly consists of two rigid bars that are originally horizontal. They are supported by pins and 0.25-in.-diameter A-36 steel rods. If the vertical load of 5 kip is applied to the bottom bar...

Problem 4 . 2 5 The assembly consists of two rigid bars that are originally horizontal. They are supported by pins and 0 . 5 0 - in . - diameter A - 3 6 steel rods. A vertical laad of 5 kip is...

PLEASE ANSWER CORRECTLY! The rigid bars A B and C D are supported by pins at A and D . The vertical rods are made of aluminium and bronze as shown. Determine the vertical displacement at Point B when...

The rigid bars A B and C D are supported by pins at A and D . The vertical rods are made of aluminum and bronze. If point C is allowed to deflect by 1 inch, what is the maximum force P that can be...

The rigid bars AB and CD are supported by pins at A and D. The vertical rods are made of aluminum and bronze. Determine the vertical displacement of the point where the force P = 10 kips is applied....

The structure in the figure is composed of two rigid bars (AB and CD) and two vertical rods made of aluminum and steel. All connections are pin joints. Determine the maximum force P that can be...

The rigid beams AB and CD are supported by pins at A and D . The vertical bars EF and BC are made of a material that has the stress - strain relation shown below. Beam CD is carrying a plate having a...

The rigid beam B C is supported by bars A B and C D of diameters d A B = 1 6 m m and d C D = 1 2 m m , as shown in the figure. Determine the deflection of the rigid beam at point E caused by a...
