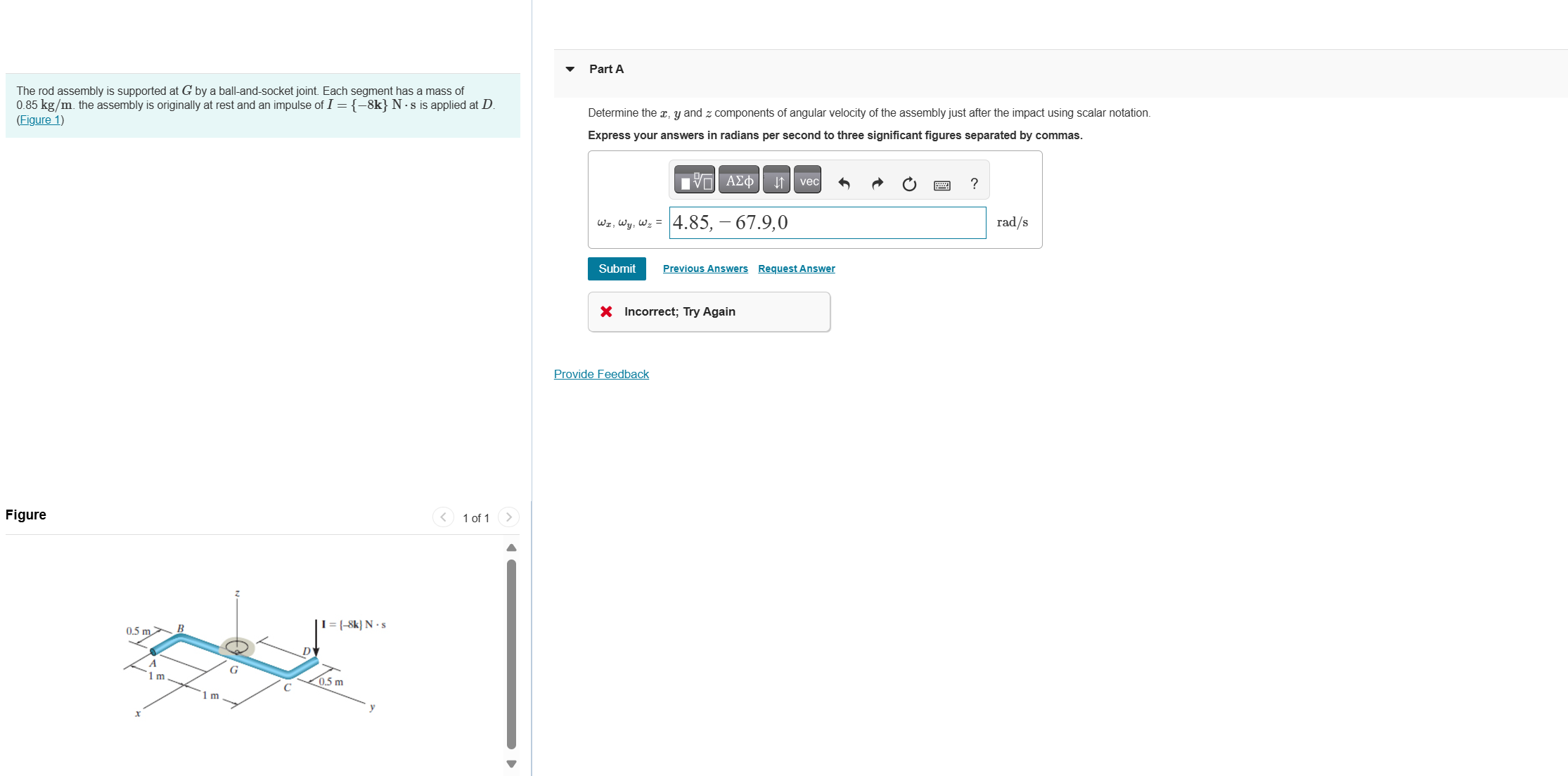

The rod assembly is supported at $\backslash ($ G $\backslash )$ by a ball$-$and$-$socket joint. Each segment has a mass of

$\backslash (0\mathrm{.}85\backslash$mathrm$\{$~kg$\}/\backslash$mathrm$\{$m$\}\backslash ).$ the assembly is originally at rest and an impulse of $\backslash ($ I$=\backslash \{-8\backslash$mathbf$\{$k$\}\backslash \}\backslash$mathrm$\{$N$\}\backslash$cdot $\backslash$mathrm$\{$s$\}\backslash )$ is applied at $\backslash ($ D $\backslash ).($Figure $1)$

Part A

Determine the $\backslash ($ x$,$ y $\backslash )$ and $\backslash ($ z $\backslash )$ components of angular velocity of the assembly just after the impact using scalar notation.

Express your answers in radians per second to three significant figures separated by commas.

Previous Answers Request Answer

Incorrect; Try Again

Provide Feedback

Figure
