Question: The shown beam is loaded by an eccentric force P that is acting at a height of 1 0 mm from the base. The beam

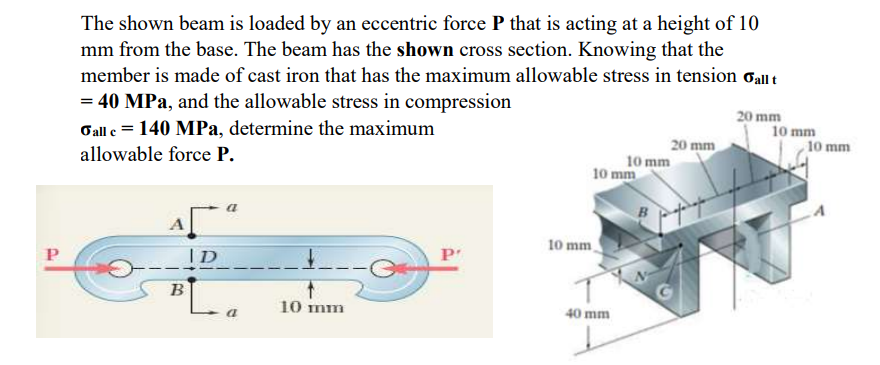

The shown beam is loaded by an eccentric force P that is acting at a height of 10
mm from the base. The beam has the shown cross section. Knowing that the
member is made of cast iron that has the maximum allowable stress in tension \sigma _(all )t
=40MPa, and the allowable stress in compression
\sigma _(all )c=140MPa, determine the maximum
allowable force P.
The shown beam is loaded by an eccentric force P
