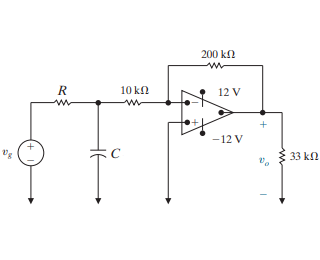

Question: The sinusoidal voltage source in the circuit shown in ( Figure 1 ) is generating the voltage v _ g = 1 . 2 cos

The sinusoidal voltage source in the circuit shown in (Figure 1) is generating the voltage v_g=1.2cos(100t) V. The capacitor is adjusted until the output voltage leads the input voltage by 120. Suppose that R =4 k
a) Find the value of C in microfarads
b) Write the steady-state expression for v_o(t) as v_o(t)= V_o * cos(t+), where -180180 Find the numerical value of V_o when C has the value found in the previous part.
c) Find the numerical value of when C has the value found.
d) Find the numerical value of when C has the value found. (in rad/s)
The sinusoidal voltage source in the circuit
