Question: The solid 6 0 - mmmm - diameter shaft is subjected to the distributed and concentrated torsional loadings shown, where T = 4 5 0

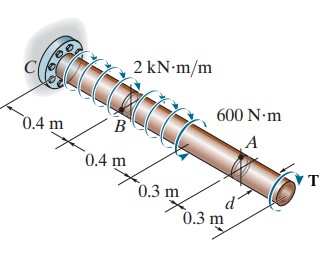

The solid 60-mmmm-diameter shaft is subjected to the distributed and concentrated torsional loadings shown, where T=450Nm. Determine the shear stress at point A. Determine the shear stress at point BB.
The solid 6 0 - mmmm - diameter shaft is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

The solid shaft is subjected to the distributed and concentrated torsional loadings shown. Determine the required diameter d of the shaft if the allowable shear stress for the material is Ï...

Q:

The solid shaft is subjected to the distributed and concentrated torsional loadings shown. Determine the required diameter d of the shaft if the allowable shear stress for the material is allow = 60...

Q:

The 60-mm-diameter solid shaft is subjected to the distributed and concentrated torsional loadings shown. Determine the absolute maximum and minimum shear stresses on the shaft's surface and specify...

Q:

The 60-mm-diameter solid shaft is subjected to the distributed and concentrated torsional loadings shown. Determine the absolute maximum and minimum shear stresses on the shafts surface, and specify...

Q:

The 60-mm-diameter solid shaft is subjected to the distributed and concentrated torsional loadings shown. Determine the shear stress at points A and B, and sketch the shear stress on volume elements...

Q:

The 60-mm-diameter solid shaft is made of A-36 steel and is subjected to the distributed and concentrated torsional loadings shown. Determine the angle of twist at the free end A of the shaft due to...

Q:

The 60-mm-diameter solid shaft is made of 2014-T6 aluminum and is subjected to the distributed and concentrated torsional loadings shown. Determine the angle of twist at the free end A of the shaft....

Q:

The 65-mm -diameter solid shaft is made of A-36 steel and is subjected to the distributed and concentrated torsional loadings shown where T =350N?m . Determine the angle of twist at the free end A of...

Q:

CoursHeroTranscribedText: Homework 4: Torsion and Bending PART I: TORSION Problem 1: The 50-mm-diameter solid shaft is subjected to the distributed and concentrated torsional loading shown below....

Q:

The 50-mm-diameter solid shaft is subjected to the distributed and concentrated torsional loading shown below. Determine the absolute maximum and minimum shear stresses on the shaft's surface, and...
