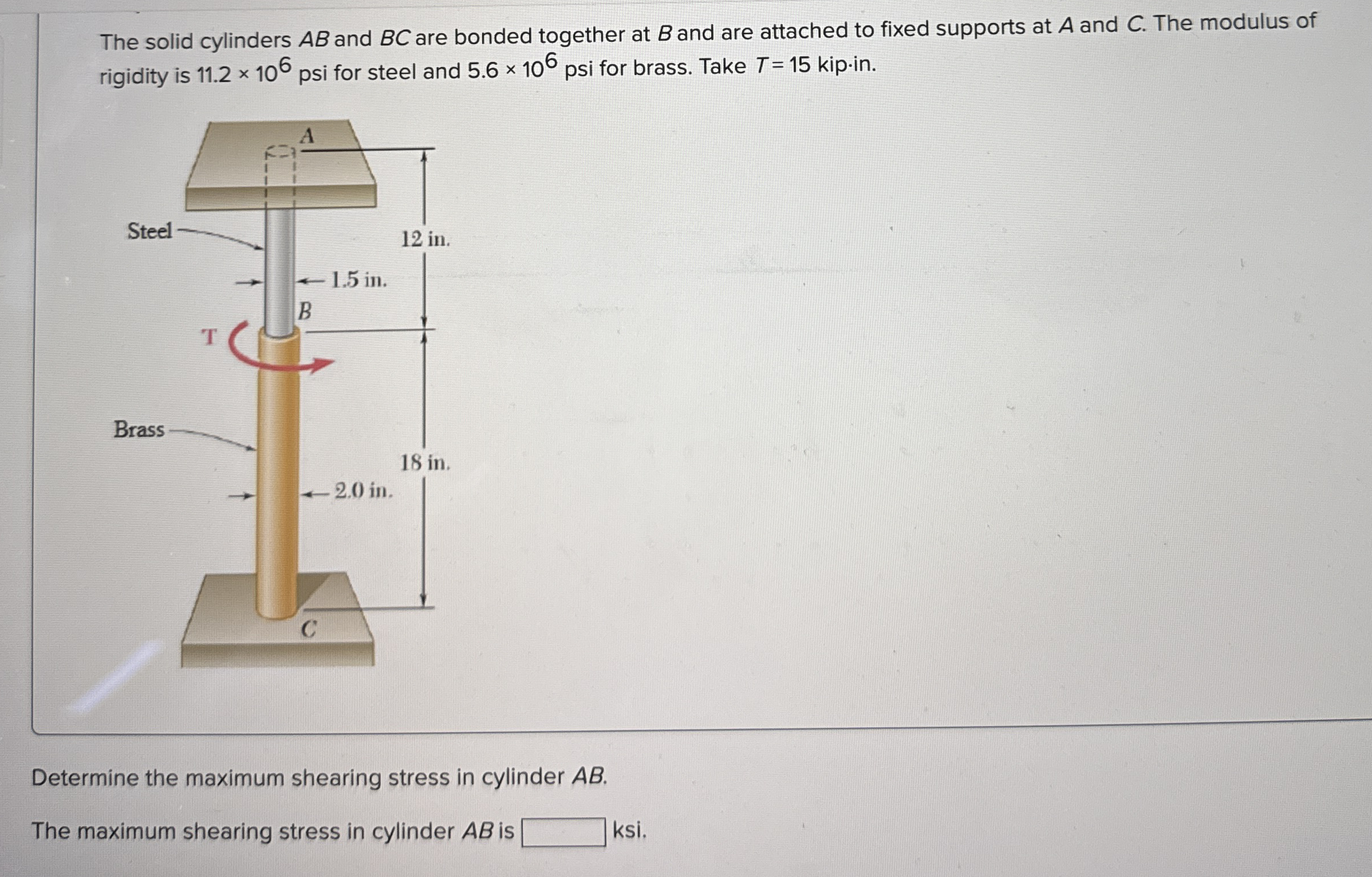

Question: The solid cylinders A B and B C are bonded together at B and are attached to fixed supports at A and C . The

The solid cylinders AB and BC are bonded together at B and are attached to fixed supports at A and C. The modulus of
rigidity is 11.2106 for steel and 5.6106 for brass. Take T=15kip*in.
Determine the maximum shearing stress in cylinder AB.
The maximum shearing stress in cylinder AB is
ksi.
The solid cylinders A B and B C are bonded
