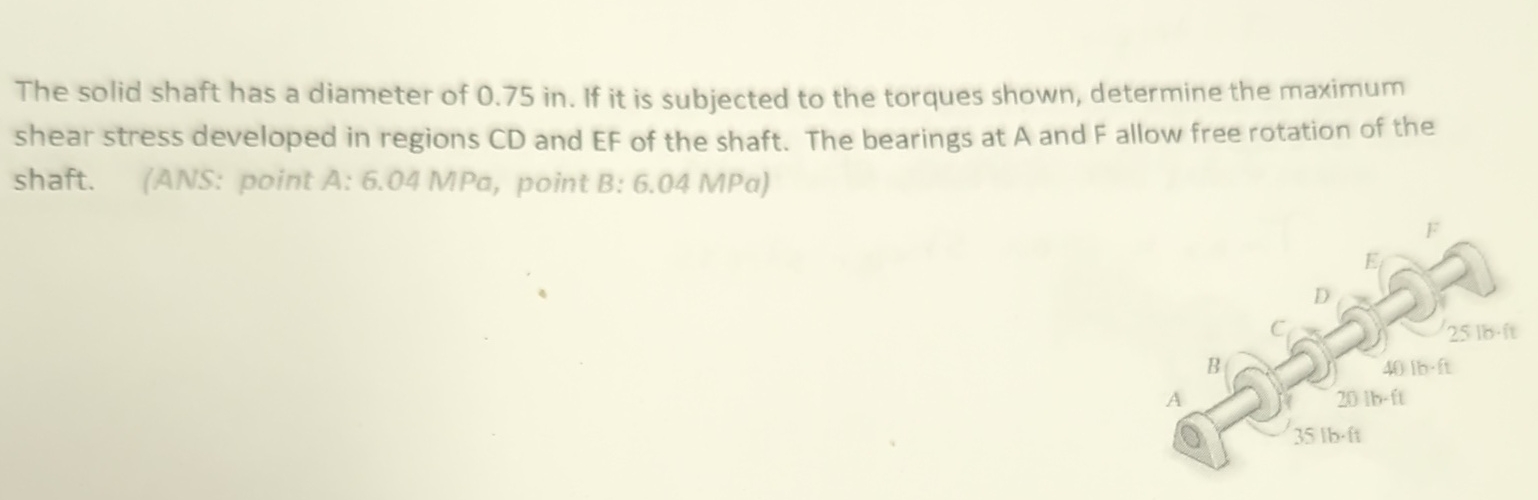

Question: The solid shaft has a diameter of 0 . 7 5 in . If it is subjected to the torques shown, determine the maximum shear

The solid shaft has a diameter of 0.75 in . If it is subjected to the torques shown, determine the maximum
shear stress developed in regions CD and EF of the shaft. The bearings at A and F allow free rotation of the
shaft. (ANS: point A: 6.04 MPa, point B: 6.04 MPa)
The solid shaft has a diameter of 0 . 7 5 in . If

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

5-14. The solid aluminum shaft has a diameter of 50 mm and an allowable shear stress of Tallow 6 MPa. Determine the largest torque T that can be applied to the shaft if it is also subjected to the...

Q:

5-6. The solid aluminum shaft has a diameter of 50 mm and an allowable shear stress of 7,),,, = 60 MPa. Determine the largest torque T, that can be applied to the shaft if it is also subjected to the...

Q:

The solid aluminum shaft has a diameter of 50 mm and an allowable shear stress of Ï allow = 60 MPa. Determine the largest torque T 1 that can be applied to the shaft if it is also subjected to...

Q:

5 - 6 . The solid shaft has a diameter of 0 . 7 5 in . If it is subjected to the torques shown, determine the maximum shear stress developed in regions B C and D E of the shaft. The bearings at A and...

Q:

Hint: For internal torques, we obey the same sign convention as for axially loaded members. However, when calculating the torsional shear stress, we instead consider the absolute value of the shear...

Q:

The solid shaft has a diameter of 1 . 5 in . It is subjected to the torques shown. The bearings at A and F allow free rotation of the shaft. ( Figure 1 ) Part A Determine the maximum shear stress...

Q:

A steel stepped shaft ABCD fixed at A is subjected to three torques at points B, C and D, with magnitudes T, 40 kip-in, T-50 kip-in and Ts-30 kip-in and directions as shown in Figure 1.1. The...

Q:

Problem 2 Consider the shaft featured in problem 1 0 - 6 ( Page 4 5 4 ) . Calculate the effective internal torques resulting from the applied torques. Your answer should feature values for sections \...

Q:

The solid shaft has a diameter of 2 in. If it is subjected to the torques shown, determine the maximum shear stress developed in regions CD and DE of the shaft. The bearings at A and F allow free...

Q:

The solid shaft has a diameter of 0.75 in. If it is subjected to the torques shown, determine the maximum shear stress developed in regions CD and EF of the shaft. The bearings at A and F allow free...
