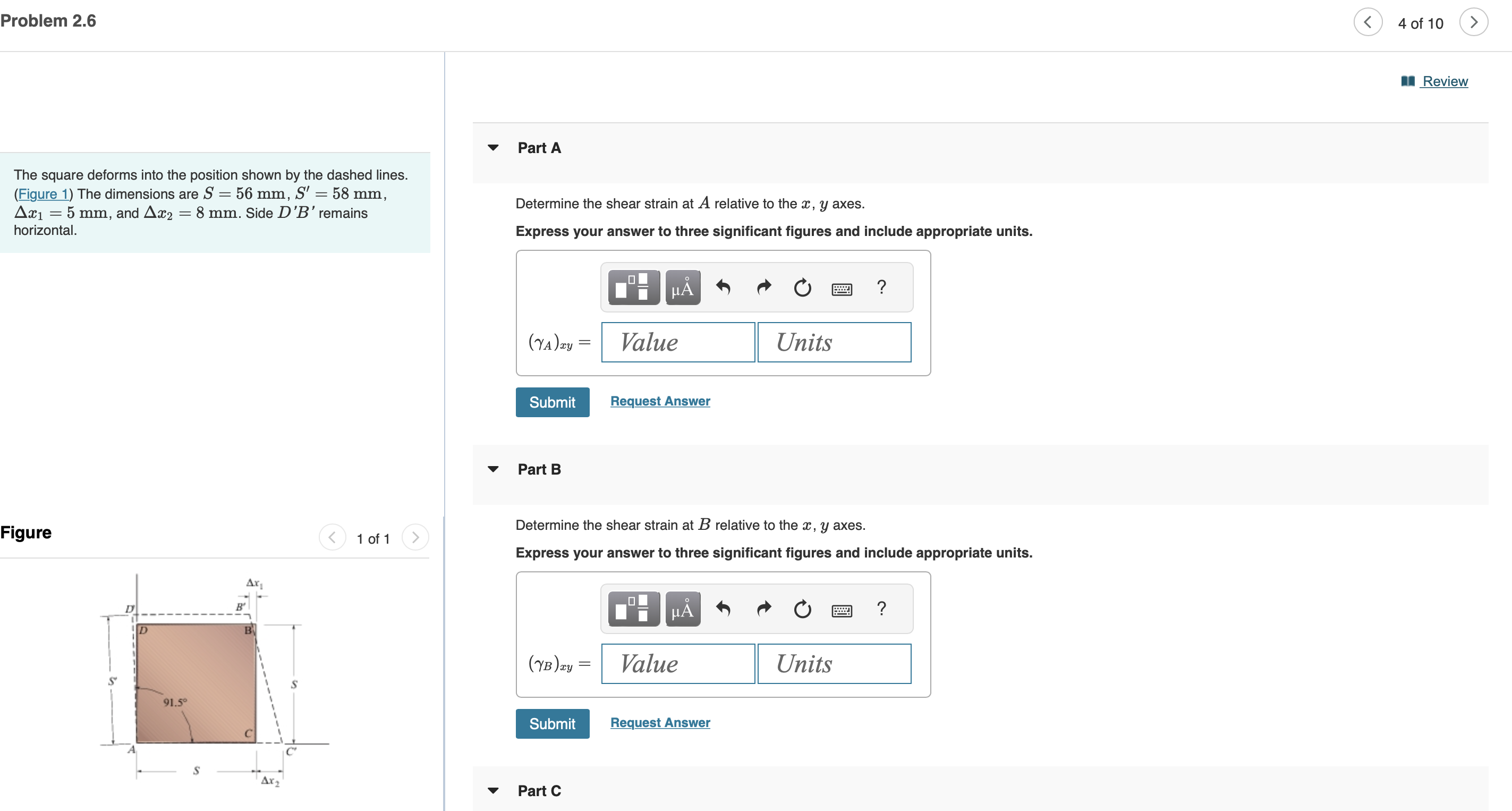

Question: The square deforms into the position shown by the dashed lines. ( Figure 1 ) The dimensions are S = 5 6 m m ,

The square deforms into the position shown by the dashed lines.

(

Figure

1)

The dimensions are

S = 56 m m, S^{'} = 58 m m,

x_{1} = 5 m m,

and

x_{2} = 8 m m .

Side

D^{'} B^{'}

remains

horizontal.

Figure

Part A

Determine the shear strain at A relative to the

x, y

axes.

Express your answer to three significant figures and include appropriate units.

Request Answer

Part B

Determine the shear strain at

B

relative to the

x, y

axes.

Express your answer to three significant figures and include appropriate units.

Part C

Determine the shear strain at C relative to the x

,

y axes.

Express your answer to three significant figures and include appropriate units.

Part D

Determine the shear strain at D relative to the

\

infty

,

y axes.

Express your answer to three significant figures and include appropriate units.
