Question: The square section bar in the figure below is fixed at one end and is subjected to a force of 1 , 5 0 0

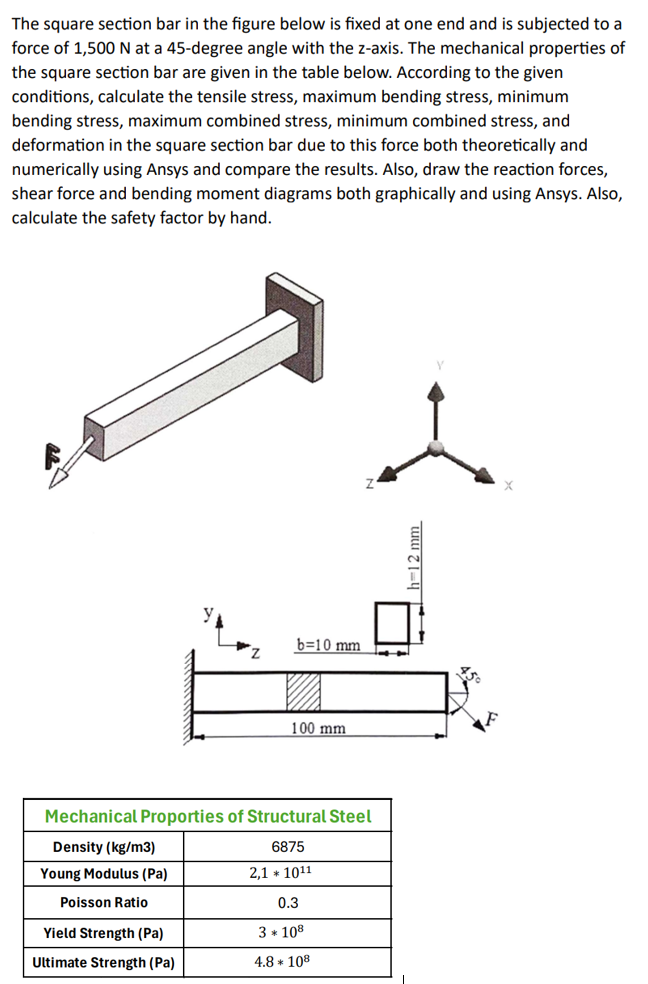

The square section bar in the figure below is fixed at one end and is subjected to a
force of 1,500N at a 45-degree angle with the z-axis. The mechanical properties of
the square section bar are given in the table below. According to the given
conditions, calculate the tensile stress, maximum bending stress, minimum
bending stress, maximum combined stress, minimum combined stress, and
deformation in the square section bar due to this force both theoretically and
numerically using Ansys and compare the results. Also, draw the reaction forces,
shear force and bending moment diagrams both graphically and using Ansys. Also,
calculate the safety factor by hand.
Can you solve this question in detail?
