The Standard 53 Semi-Trailer Dimensions The average dimensions for a 53 semi-trailer are a 53 length, a 102 width, a door height of 110, and a total height of 136. These are the largest dimensions a trailer can come in before an oversized load. Anything larger would require additional permits to transport legally. Air Ride trailers (also called vans) have slight height variations. Dimensions are provided below in standard or imperial measures (not in metric), as is still standard in the shipping industry.

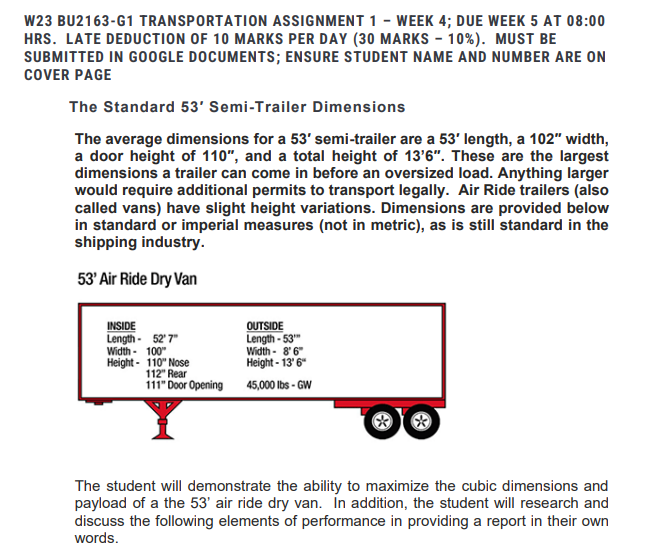

W23 BU2163-G1 TRANSPORTATION ASSIGNMENT 1 - WEEK 4; DUE WEEK 5 AT 08:00 HRS. LATE DEDUCTION OF 10 MARKS PER DAY (30 MARKS - 10\%). MUST BE SUBMITTED IN GOOGLE DOCUMENTS; ENSURE STUDENT NAME AND NUMBER ARE ON COVER PAGE The Standard 53' Semi-Trailer Dimensions The average dimensions for a 53' semi-trailer are a 53' length, a 102" width, a door height of 110", and a total height of 13'6". These are the largest dimensions a trailer can come in before an oversized load. Anything larger would require additional permits to transport legally. Air Ride trailers (also called vans) have slight height variations. Dimensions are provided below in standard or imperial measures (not in metric), as is still standard in the shipping industry. 53' Air Ride Dry Van The student will demonstrate the ability to maximize the cubic dimensions and payload of a the 53 ' air ride dry van. In addition, the student will research and discuss the following elements of performance in providing a report in their own words. Elements of Performance a. (5 marks) Review trailer/container types utilized in the trucking industry i. Number of axles and weight distribution ii. Different chassis types; tandem, tri-axles, tridems, quads b. (3 marks) Review the concept of Fuel Surcharge (FSC) and its use in the trucking industry c. (3 marks) Review how payload limits differ between provinces in Canada and states within the USA d. (4 marks) Review cabotage, driver hour limitation, truckload (TL) and less than truckload (LTL) within North America e. (2 marks) Review the ability to modify pallet tier heights to maximize the cubic dimensions and/or payload (utilize a 4840 inch pallet) f. (3 marks) Review common strategies for load securement and weight displacement utilizing bulkheads, airbags, saddlebags etc. For the following activity, you will explain the most efficient trailer loading pattern. Please show your work when answering the questions. (10 marks) Load a 53-foot tandem axle air ride dry van for shipment from Toronto to Montreal. Determine the load planning configuration to get the maximum number of boxes into the trailer. g. You will be using CHEP pallets (48"x40"x6" \& 60lbs each) to load your products on before loading the trailer. How many pallets will fit into the trailer? h. Using cartons that measure 12-inch 12-inch 12-inch (LWH), how many cartons of product can you fit onto each pallet? i. How many cartons can you fit into the trailer without overhanging the sides of the pallets (No loose cartons are permitted)? j. If the maximum total weight of product that can be carried inside the trailer is 41446lbs, and assuming that all cartons weigh the same, what is the maximum weight in pounds of each carton (rounded down to the nearest pound)? k. How will the total weight of the shipment be impacted during spring thaw season in Quebec BASED ON 2022 LIMITS (rounded down to the nearest pound)
