Question: The state machine shown below is an example of a ( n ) : A . Mealy machine. B . deterministic finite automaton. C .

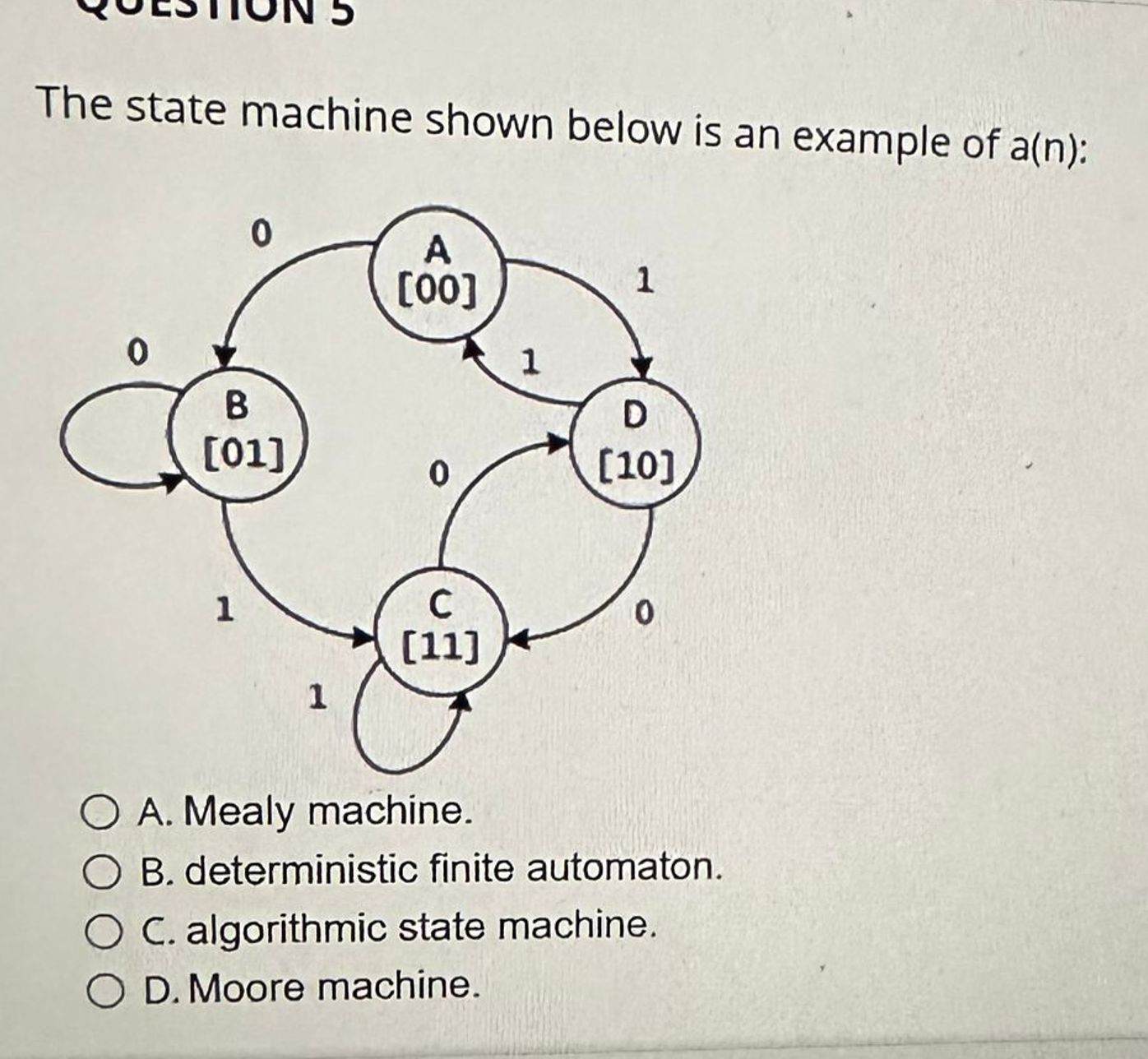

The state machine shown below is an example of a(n) :
A. Mealy machine.
B. deterministic finite automaton.
C. algorithmic state machine.
D. Moore machine.
The state machine shown below is an example of a(n) :

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
