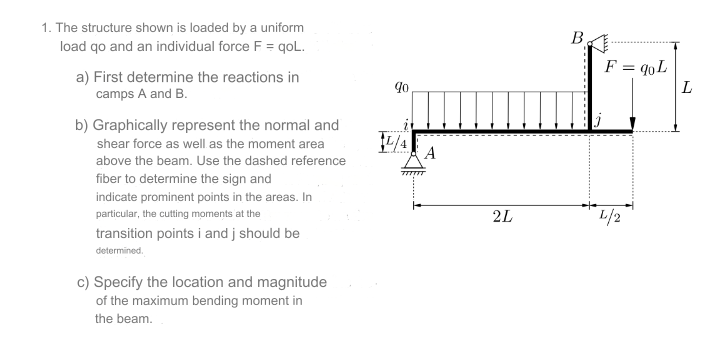

The structure shown is loaded by a uniform

load qo and an individual force $F=$ qoL.

a$)$ First determine the reactions in

camps A and B$.$

b$)$ Graphically represent the normal and

shear force as well as the moment area

above the beam. Use the dashed reference

fiber to determine the sign and

indicate prominent points in the areas. In

particular, the cutting moments at the

transition points i and $j$ should be

determined.

c$)$ Specify the location and magnitude

of the maximum bending moment in

the beam.
