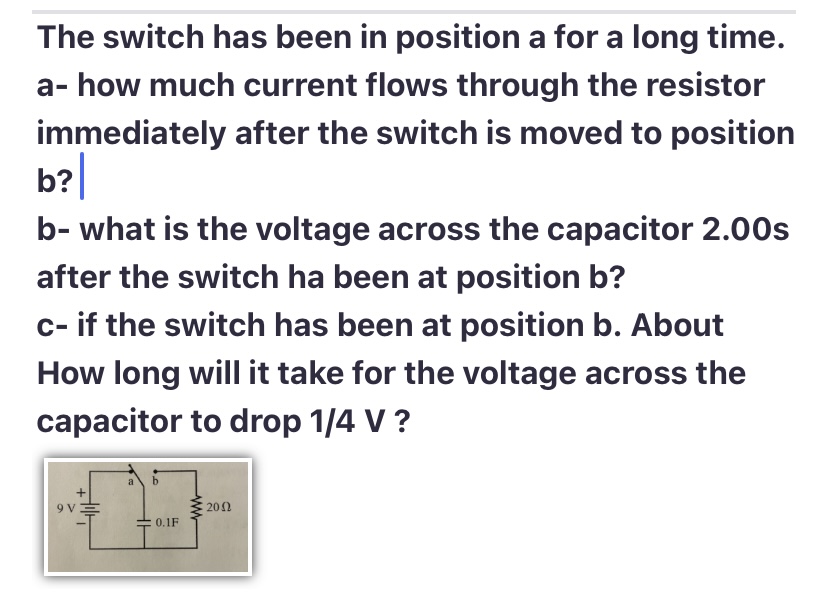

Question: The switch has been in position a for a long time. a- how much current flows through the resistor immediately after the switch is moved

The switch has been in position a for a long time. a- how much current flows through the resistor immediately after the switch is moved to position b? b- what is the voltage across the capacitor 2.003 after the switch ha been at position b? c- if the switch has been at position b. About How long will it take for the voltage across the capacitor to drop 1/4 V

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Physics Questions!

Consider the below circuit with a constant current source. The parameter values are i s = 1 , R 1 = 2 , R 2 = 1 , and C = 1 . ( Neglect units in this question. ) The switch has been in position a for...

The circuit sho Listen to this page agram consists of 1 0 - volt battery, a 4 7 - ohm resistor, and 0 . 3 7 5 - farad capacitor, connected as shown. Suppose the switch had been in Position 1 for a...

This problem deals with a highly simplified model of a car of weight 2560 lb (mass m = 80 slugs in fps units). Assume that the suspension system acts like a single spring and its shock absorbers like...

figure below. Switch S has been closed for a very long time, and a constant current has been 3. Two uncharged capacitors; three resistors and the ideal battery are shown as shown in the established...

The switch, after being in position P 1 for a long time, is moved to position P 2 at t = 0 + . Determine the natural response, vc ( t ) . Calculate the total energy dissipated in the 8 ohm resistor.

5) In the circuit shown below, the switch had been in position a for a long time. At t= 0, the switch was moved instantaneously to position b, and stayed there for 0.1[s]. Then, at t= 0.1[s], the...

don't use Al bot or chat GPT otherwise downvote.correct answer will get instant upvote show calculation I(!) (A) 0800 time (s) In the RL circuit shown above at the right the emf of the battery is & =...

( adapted from Prob. 8 , p . 4 0 3 , Brown's Introductory Physics II ) Consider the diagrams below. Switch S has been closed for a very long time, such that the current in each part of the circuit...

answer QUESTION 9 The switch has been in position A for a long time. At time t = 0 the switch is quickly moved to position B. Select the equation that describes the current that will flow through the...

(a) For the circuit in figure Q2.a, where the switch has been at position A for a long time, the switch moves from position A to position B at t = 0. (i) Find the initial value of 13 (t), 13(0),...
