Question: The switch in Fig. 7 . 4 3 has been in position A for a long time. At t = 0 , the switch moves

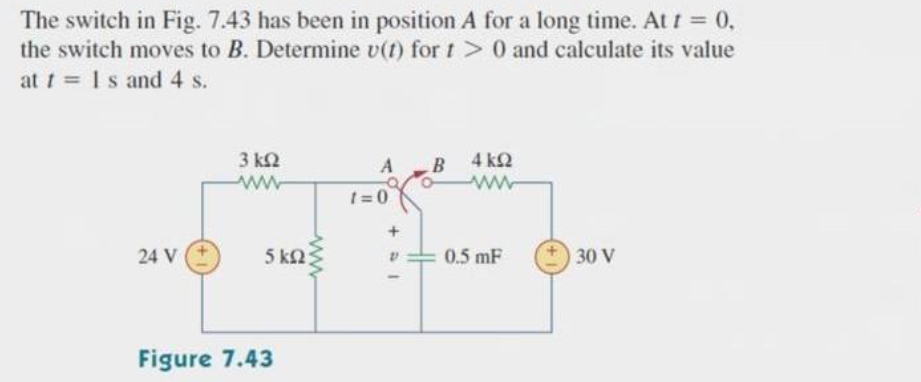

The switch in Fig. 7.43 has been in position A for a long time. At t=0, the switch moves to B. Determine v(t) for t>0 and calculate its value at t=1s and 4 s .
rigure 1.43
The switch in Fig. 7 . 4 3 has been in position A

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Electrical Engineering Questions!

Q:

In the circuit of Fig. 7.143, the switch has been in position a for a long time but moves instantaneously to position b at t = 0 Determine i0(t). 5 4 0.11 12

Q:

The switch in the circuit shown below has been in position a for a long time. At t = 0, the switch moves to position b. Find 1. i1(t) fort 20 2. the energy at t = infinity Please show work a 5 mA 50...

Q:

The two switches in the circuit seen in Fig. P8.11 operate synchronously. When switch 1 is in position a, switch 2 is in position d. When switch 1 moves to position b, switch 2 moves to position c....

Q:

(a) For the circuit in figure Q2.a, where the switch has been at position A for a long time, the switch moves from position A to position B at t = 0. (i) Find the initial value of 13 (t), 13(0),...

Q:

PROBLEM 0 4 : Natural Response of Series RLC Ckts . The switch in the circuit in Fig. 4 a below has been in position a for a long time. At t = 0 , the switch moves instantaneously to a new position b...

Q:

PROBLEM 0 3 : Natural Response of RC Circuits 3 a . - 2 5 points: The switch has been in position " a " for a long time. Obtain a mathematical expression for the natural response of the resistor's...

Q:

2 3 0 Response of First - Order RL and R C Circuits Example 7 . 6 Determining the Step Response of an RCCi The switch in the circuit shown in Fig. 7 . 2 2 has been in position 1 for a long time. At t...

Q:

1 3 . 1 0 The switch in the circuit in Fig. P 1 3 . 1 0 has been in position x for a long time. At t = 0 , the switch moves instantaneously to position t . . a ) Find i o for t 0 b ) Find v o for t 0...

Q:

1 3 . 1 1 The switch in the circuit shown in Fig. P 1 3 . 1 1 has pspice been in position x for a long time. At t = 0 , the mulnsim switch moves instantaneously to position y . a ) Construct an s -...

Q:

The switch in Fig. 8.77 moves from position A to position B at t = 0 (please note that the switch must connect to point B before it breaks the connection at A, a make-before-break switch). Determine...
