Question: The system below is a reach - in freezer with a cap tube. Refrigerant is R 4 0 4 a . Standard conditions are 0

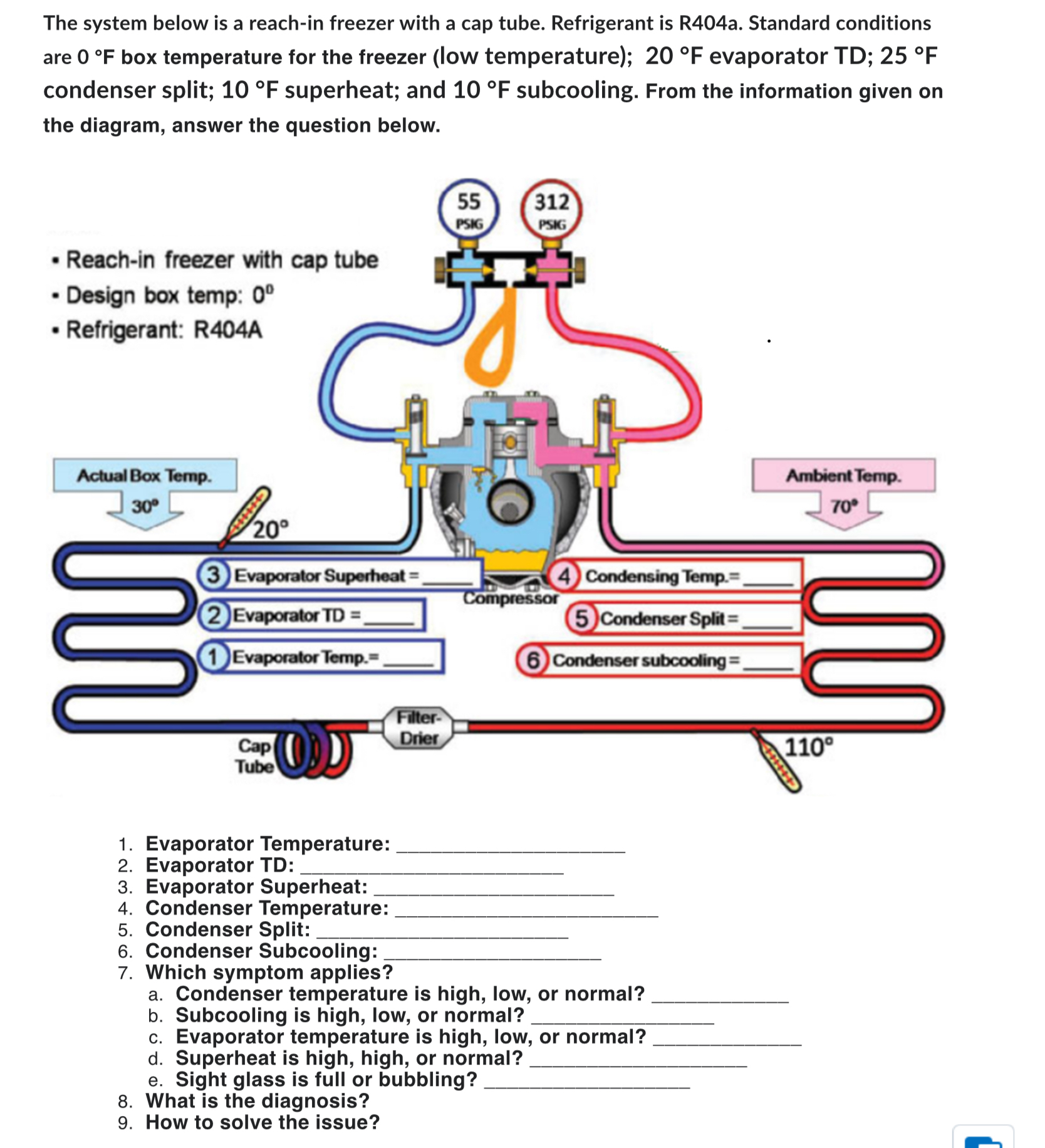

The system below is a reach-in freezer with a cap tube. Refrigerant is R404a. Standard conditions are 0F box temperature for the freezer (low temperature); 20F evaporator TD; 25F condenser split; 10F superheat; and 10F subcooling. From the information given on the diagram, answer the question below.
Evaporator Temperature:
Evaporator TD:
Evaporator Superheat: q,
Condenser Temperature: q,
Condenser Split: q,
Condenser Subcooling: q,
Which symptom applies?
a. Condenser temperature is high, low, or normal?
b. Subcooling is high, low, or normal? q,
c. Evaporator temperature is high, low, or normal?
d. Superheat is high, high, or normal?
e. Sight glass is full or bubbling? q,
What is the diagnosis?
How to solve the issue?
