Question: The T - Beam constructed using White Spruce Structural Wood as shown in the below figure. Each nail can support a shear force of 1

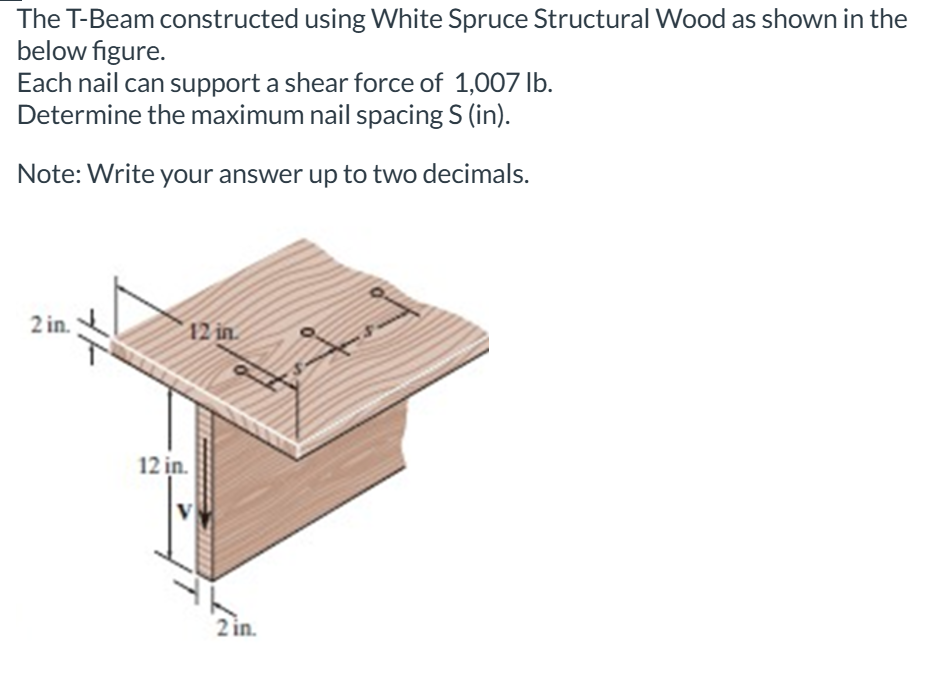

The T-Beam constructed using White Spruce Structural Wood as shown in the below figure.
Each nail can support a shear force of 1,007 lb.
Determine the maximum nail spacing \( S \)(in).
Note: Write your answer up to two decimals.
The T - Beam constructed using White Spruce

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
