Question: The torques shown below are applied to a 1 0 8 mm solid circular shaft through the four pulleys labeled A , B , C

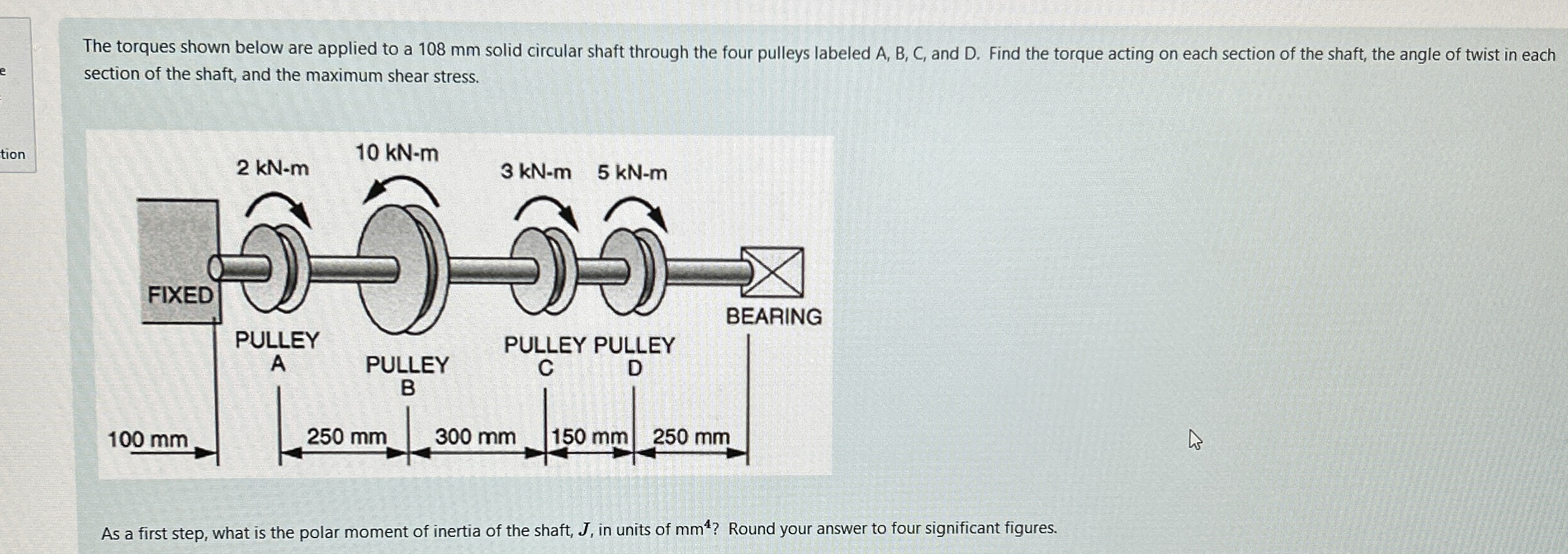

The torques shown below are applied to a mm solid circular shaft through the four pulleys labeled and D Find the torque acting on each section of the shaft, the angle of twist in each section of the shaft, and the maximum shear stress.
As a first step, what is the polar moment of inertia of the shaft, in units of Round your answer to four significant figures.
