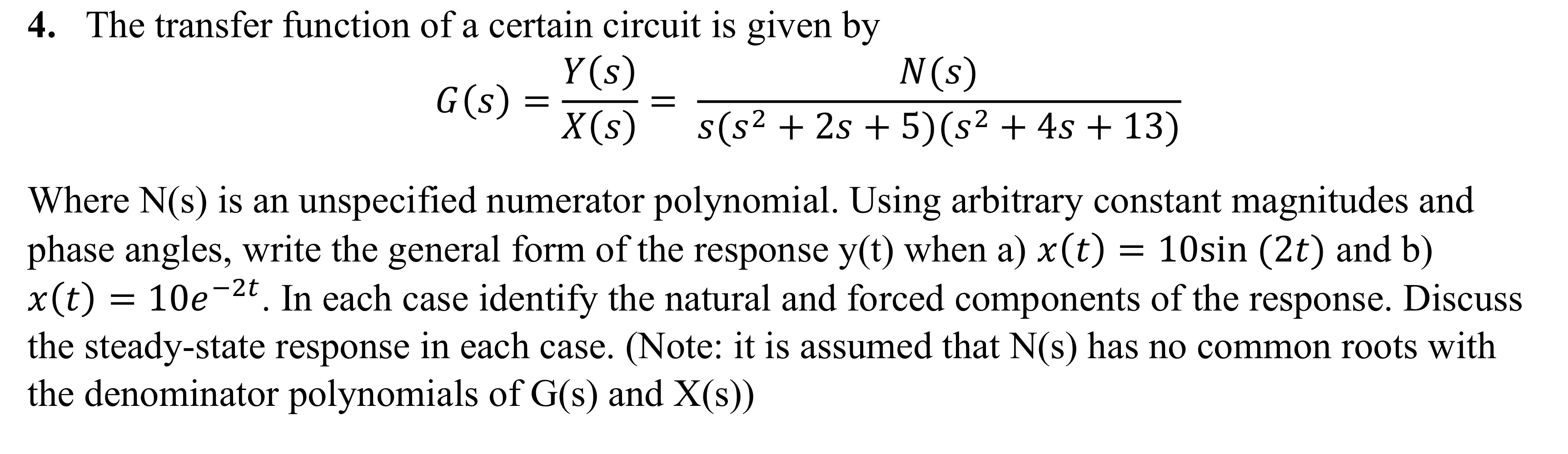

Question: The transfer function of a certain circuit is given by G ( s ) = Y ( s ) x ( s ) = N

The transfer function of a certain circuit is given by
G(s)=Y(s)x(s)=N(s)s(s2+2s+5)(s2+4s+13)
Where N(s) is an unspecified numerator polynomial. Using arbitrary constant magnitudes and phase angles, write the general form of the response y(t) when a)x(t)=10sin(2t) and b )x(t)=10e-2t. In each case identify the natural and forced components of the response. Discuss the steady-state response in each case. (Note: it is assumed that N(s) has no common roots with the denominator polynomials of G(s) and x(s)
