Question: The truss shown below is supported by a pin at A and a roller at E. Determine the reactions. 5 kN Tip: 2 kN

The truss shown below is supported by a pin at A and

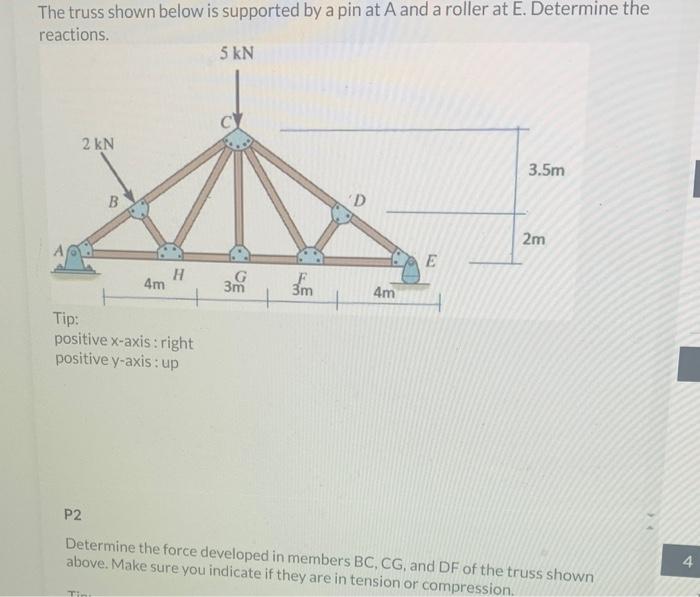

The truss shown below is supported by a pin at A and a roller at E. Determine the reactions. 5 kN Tip: 2 kN B 4m D 3.5m 2m E H 3m m 4m positive x-axis: right positive y-axis: up P2 Determine the force developed in members BC, CG, and DF of the truss shown above. Make sure you indicate if they are in tension or compression. 4

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
