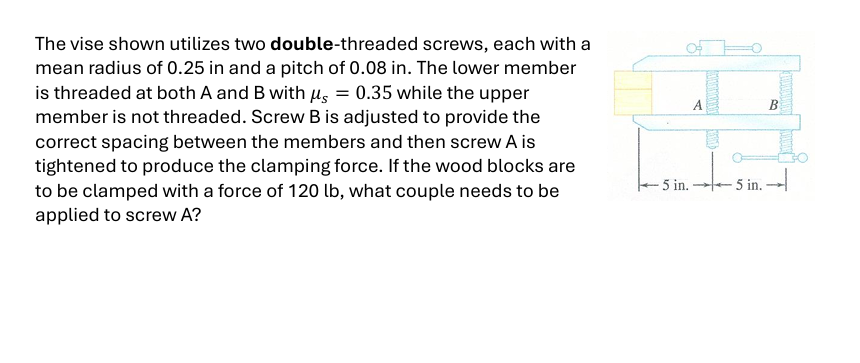

The vise shown utilizes two double-threaded screws, each with a
mean radius of 0.25 in and a pitch of 0.08 in . The lower member
is threaded at both A and B with s=0.35 while the upper
member is not threaded. Screw B is adjusted to provide the
correct spacing between the members and then screw A is
tightened to produce the clamping force. If the wood blocks are
to be clamped with a force of 120 lb , what couple needs to be
applied to screw A?
The vise shown utilizes two double - threaded
