Question: The weightless beam, ABCD, is supported by a pin support at A and a roller at C . There is a 4 5 k N

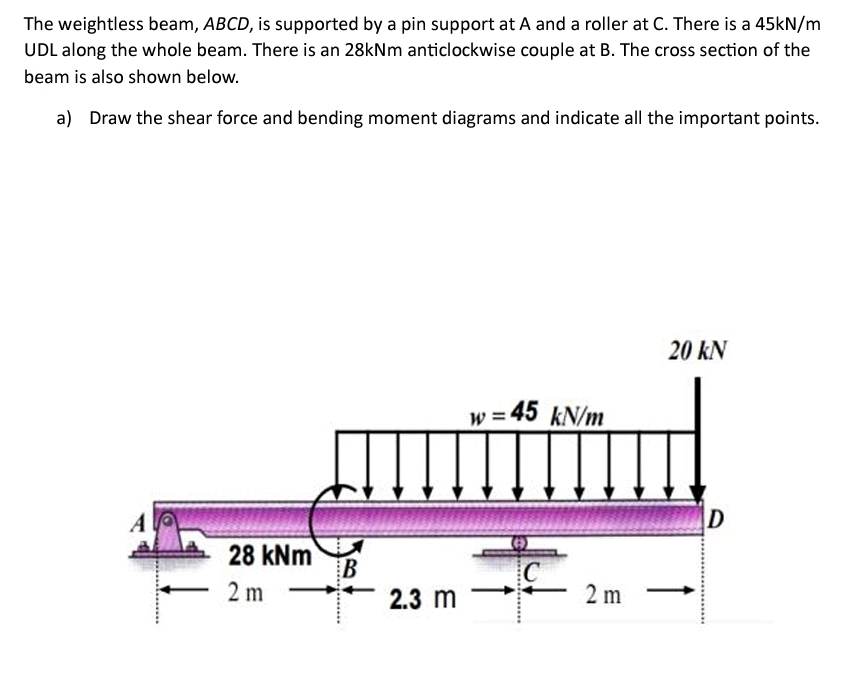

The weightless beam, ABCD, is supported by a pin support at A and a roller at C. There is a 45kNm UDL along the whole beam. There is an 28 kNm anticlockwise couple at B . The cross section of the beam is also shown below.
a) Draw the shear force and bending moment diagrams and indicate all the important points.
The weightless beam, ABCD, is supported by a pin

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
