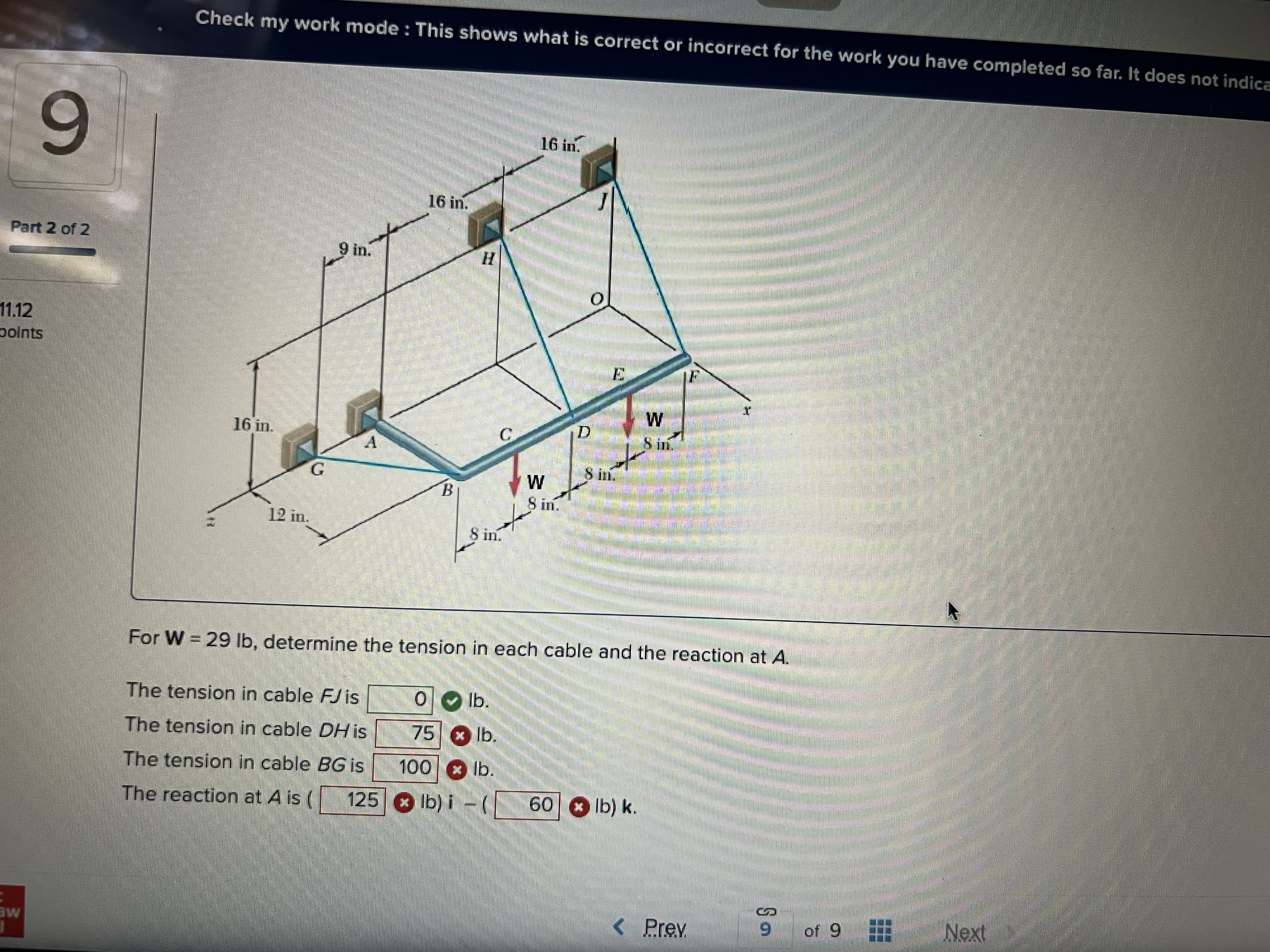

the work you have completed so far. It does not indicate NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. A rigid L-shaped member ABF shown in the figure is supported by a ball-and-socket joint at A and by three cables. 16 in. 16 in. 9 in. O W 16 in. G B W 12 in. For W - 29 lb, determine the tension in each cable and the reaction at A. The tension in cable F is 0 Ob Prev. of 9 NextRequired information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. In the given figure, the horizontal platform ABCD weighs 60-lb and supports a 380-lb load at its center. The platform is normally held in position by the hinges at A and B and by braces CE and DE. Consider brace DE is removed. The hinge at A does not exert any axial thrust. B 13 ft 2 ft D ices 4 ft Determine the reactions at hinges and the force exerted by the remaining brace CE. The force exerted by the brace CE is The reaction at A is - ( Ib) i. The reaction at B is - Ib) i + ( b) j - (b) k. CAP Prey of 9 Next > MacBook AirCheck my work mode : This shows what is correct or incorrect for the work you have completed so far. It does not indic 16 in. 16 in. Part 2 of 2 9 in. O 11.12 points W 16 in. S in W B 12 in. For W = 29 lb, determine the tension in each cable and the reaction at A. The tension in cable FJ is Olb The tension in cable DH is | 75 ) lb. The tension in cable BG is |100 @) b. The reaction at A is ( 125 @ b) i - 60 ( Ib) k.
