Question: There are two classes x and Y . Class Y is a subclass of x . There one constructors class X and one constructor Y

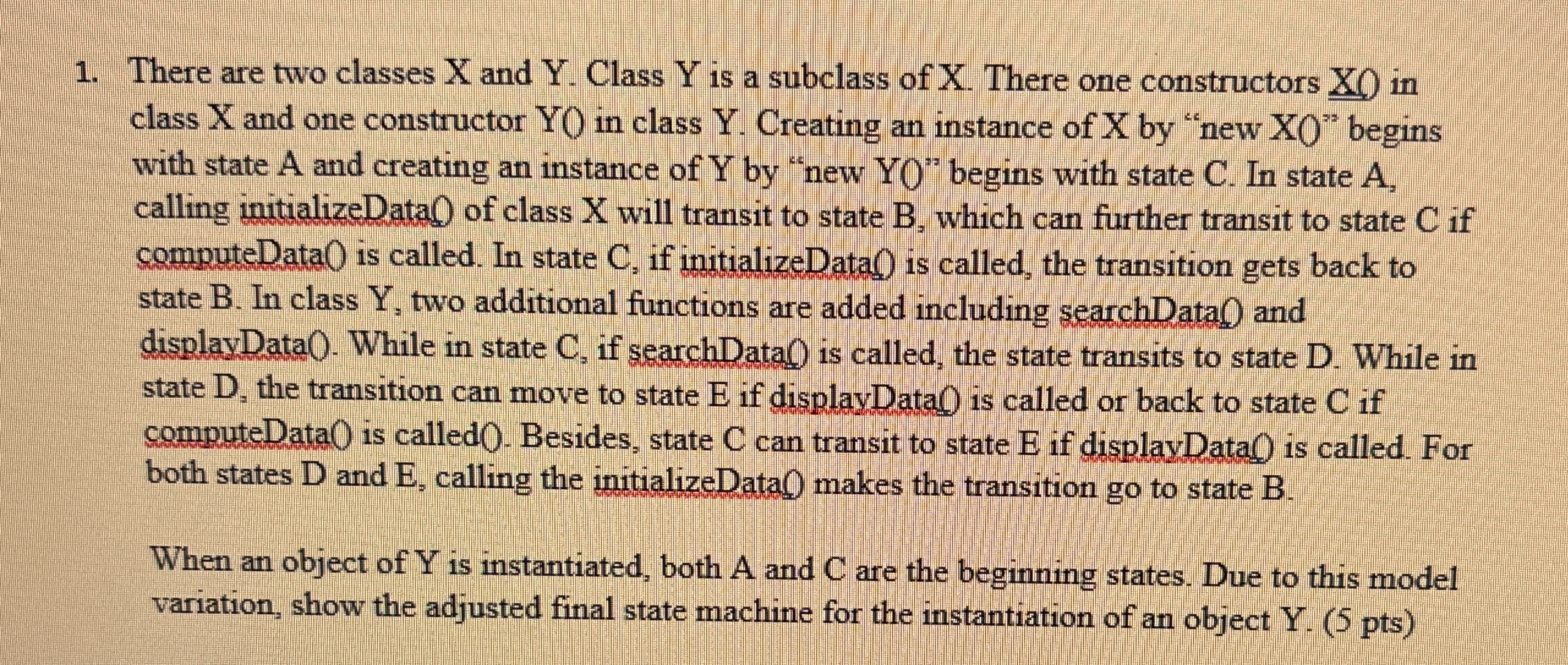

There are two classes x and Y. Class Y is a subclass of x. There one constructors class X and one constructor YO in class Y . Creating an instance of X by "new " begins with state A and creating an instance of Y by "new YO " begins with state C . In state A, calling initializeData0 of class X will transit to state B , which can further transit to state C if computeData( is called. In state C , if initializeData) is called, the transition gets back to state B. In class Y, two additional functions are added including searchData 0 and displayData(. While in state C , if searchData() is called, the state transits to state D . While in state D, the transition can move to state E if displayData, is called or back to state C if computeData() is called(O. Besides, state C can transit to state E if displayData() is called. For both states D and E , calling the initializeData 0 makes the transition go to state B .
When an object of Y is instantiated, both A and C are the beginning states. Due to this model variation, show the adjusted final state machine for the instantiation of an object Y .(5 pts)
