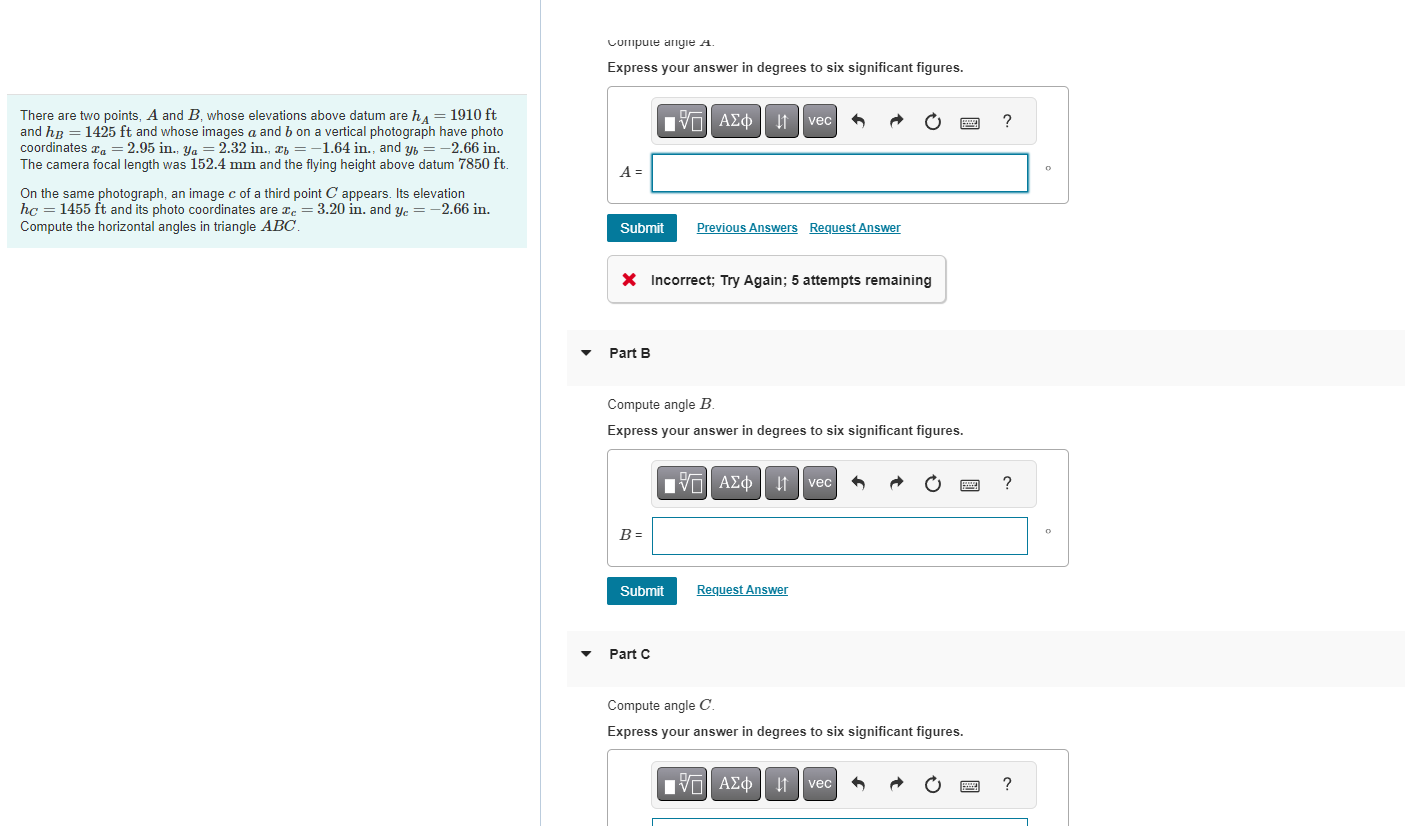

There are two points, A

and B

$,$ whose elevations above datum are hA$=1910$ft

and hB$=1425$ft

and whose images a

and b

on a vertical photograph have photo coordinates xa$=2\mathrm{.}95$in$.$

$,$ ya$=2\mathrm{.}32$in$.$

$,$ xb$=1\mathrm{.}64$in$.$

$,$ and yb$=2\mathrm{.}66$in$.$

The camera focal length was $152\mathrm{.}4$mm

and the flying height above datum $7850$ft

$.$

On the same photograph, an image c

of a third point C

appears. Its elevation hC$=1455$ft

and its photo coordinates are xc$=3\mathrm{.}20$in$.$

and yc$=2\mathrm{.}66$in$.$

Compute the horizontal angles in triangle ABC

$.$

Part A

Compute angle A

$.$

Express your answer in degrees to six significant figures.

Activate to select the appropriates symbol from the following choices. Operate up and down arrow for selection and press enter to choose the input value type

A

$=$

$$

Previous AnswersRequest Answer

Incorrect; Try Again; $5$ attempts remaining

Part B

Compute angle B

$.$

Express your answer in degrees to six significant figures.

Activate to select the appropriates symbol from the following choices. Operate up and down arrow for selection and press enter to choose the input value type

B

$=$

$$

Previous AnswersRequest Answer

Incorrect; Try Again; $5$ attempts remaining

Part C

Compute angle C

$.$

Express your answer in degrees to six significant figures.

Activate to select the appropriates symbol from the following choices. Operate up and down arrow for selection and press enter to choose the input value type

C

$=$

$$

Request Answer
