Question: This 3 0 ^ ( @ ) vertical bend in the figure below, for the 2 0 - inch diameter pipe carries water at a

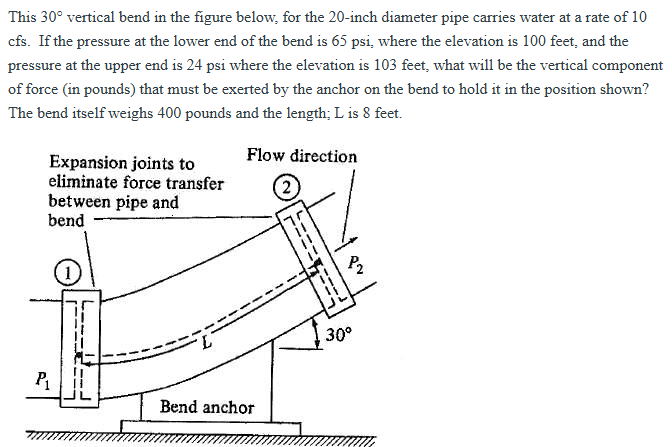

This 30^(@) vertical bend in the figure below, for the 20-inch diameter pipe carries water at a rate of 10 cfs. If the pressure at the lower end of the bend is 65 psi , where the elevation is 100 feet, and the pressure at the upper end is 24 psi where the elevation is 103 feet, what will be the vertical component of force (in pounds) that must be exerted by the anchor on the bend to hold it in the position shown? The bend itself weighs 400 pounds and the length; L is 8 feet.
This 3 0 ^ ( @ ) vertical bend in the figure
