Question: This exercise is divided in two problems, Problem 3 - 1 and Problem 3 - 2 , both specified below. Problem 4 - 1 A

This exercise is divided in two problems, Problem 3-1 and Problem 3-2, both specified below.
Problem 4-1

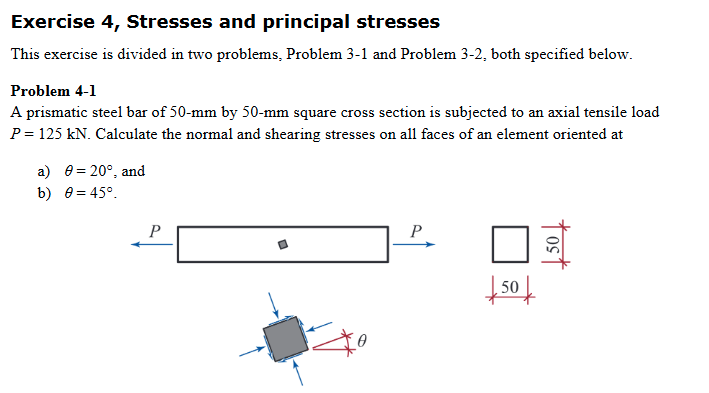

A prismatic steel bar of 50-mm by 50-mm square cross section is subjected to an axial tensile load
P=125kN. Calculate the normal and shearing stresses on all faces of an element oriented at
a)=20, and
b)=45.
This exercise is divided in two problems, Problem

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
