Question: This is a practice exmaple problem we got for practice I do not know how to start or solve it , can you solve showing

This is a practice exmaple problem we got for practice I do not know how to start or solve it, can you solve showing all steps and explain them. Please do it in MATLAB Simulink the model
Problem Statement

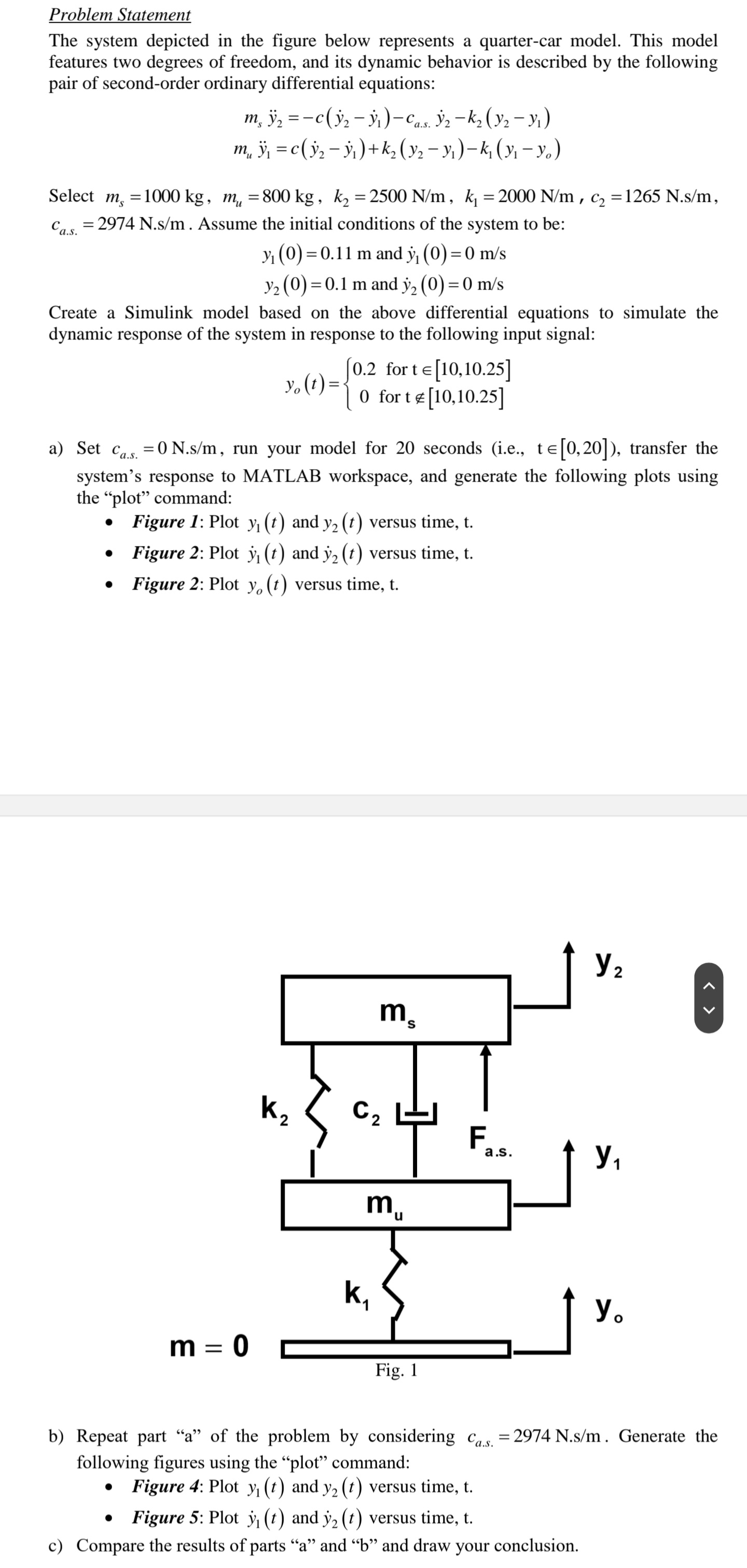

The system depicted in the figure below represents a quarter-car model. This model
features two degrees of freedom, and its dynamic behavior is described by the following
pair of second-order ordinary differential equations:
msy2=-c(y2-y1)-ca.s.y2-k2(y2-y1)
muy1=c(y2-y1)+k2(y2-y1)-k1(y1-yo)
Select ms=1000kg,mu=800kg,k2=2500Nm,k1=2000Nm,c2=1265N.sm,
ca.s.=2974N.sm. Assume the initial conditions of the system to be:
y1(0)=0.11m and y1(0)=0ms
y2(0)=0.1m and y2(0)=0ms
Create a Simulink model based on the above differential equations to simulate the
dynamic response of the system in response to the following input signal:
yo(t)={0.2fortin[10,10.25]0fort!in[10,10.25]
a) Set ca.s.=0N.sm, run your model for 20 seconds (i.e., tin[0,20]), transfer the
system's response to MATLAB workspace, and generate the following plots using
the "plot" command:
Figure 1: Plot y1(t) and y2(t) versus time, t .
Figure 2: Plot y1(t) and y2(t) versus time, t .
Figure 2: Plot yo(t) versus time, t .
b) Repeat part " a " of the problem by considering ca.s.=2974N.sm. Generate the
following figures using the "plot" command:
Figure 4: Plot y1(t) and y2(t) versus time, t .
Figure 5: Plot y1(t) and y2(t) versus time, t .
c) Compare the results of parts "a" and "b" and draw your conclusion.
