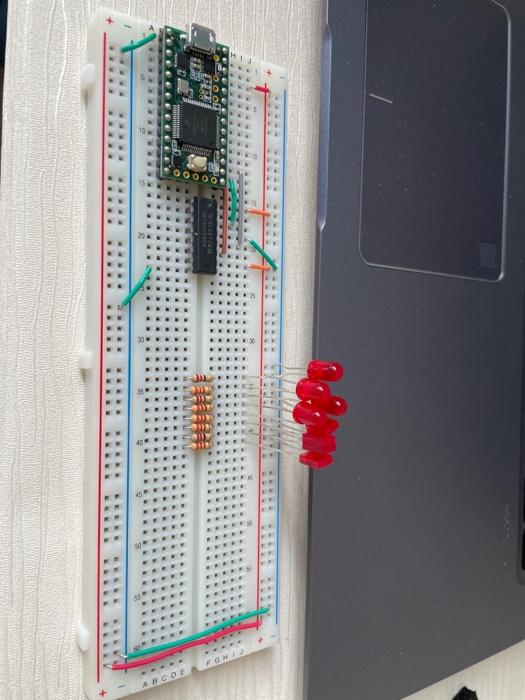

This is an Arduino program, which uses the shift register to control the LED lamp. I have connected the circuit, but I don't know how to write the Arduino C code. The circuit diagram is shown below.

Instruction

Demo #1: Master basic operation of a shift register using eight LEDs and one shift register.

1. Using the data sheet from the previous task, plan out the placement of a shift register with a set of 8 LEDs and their accompanying resistors. Shift register signals that you will need to control via the Arduino are SERial input (SER), the Shift Register clock (SRCLK), and the output Register clock (RCLK). Shift register signals that you will need to control using the power rails are OE and MRCLR.

2. Wire up a shift register and a set of eight LEDs.

3. Consider carefully whether the LSB or MSB needs to be loaded first! Implement the code to light up a single LED and make it travel, bouncing from end to end at some pleasing speed.

I only need arduino C language code.
