Question: This is the complete question = (5) Problem 7. The figure shows two pipes connected by a U-tube manometer. The pressure in pipe A is

This is the complete question = (5) Problem 7. The figure

This is the complete question

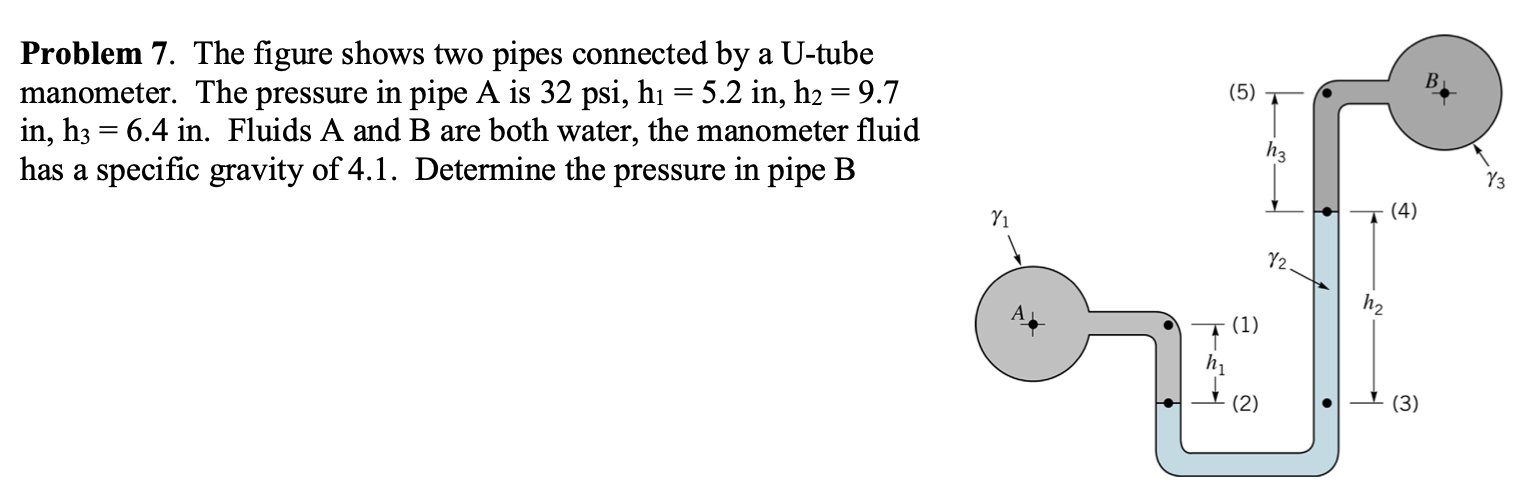

= (5) Problem 7. The figure shows two pipes connected by a U-tube manometer. The pressure in pipe A is 32 psi, h = 5.2 in, h2 = 9.7 in, h3 = 6.4 in. Fluids A and B are both water, the manometer fluid has a specific gravity of 4.1. Determine the pressure in pipe B h3 Y3 11 (4) 72 h2 (1) (2) (3) = (5) Problem 7. The figure shows two pipes connected by a U-tube manometer. The pressure in pipe A is 32 psi, h = 5.2 in, h2 = 9.7 in, h3 = 6.4 in. Fluids A and B are both water, the manometer fluid has a specific gravity of 4.1. Determine the pressure in pipe B h3 Y3 11 (4) 72 h2 (1) (2) (3)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
