Question: This is to be done using a k-map. Optimize the following Boolean functions F together with the don't-care conditions d in (1) sum-of-products and (2)

This is to be done using a k-map. Optimize the following

This is to be done using a k-map.

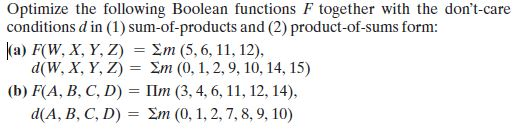

Optimize the following Boolean functions F together with the don't-care conditions d in (1) sum-of-products and (2) product-of-sums form: (a) F(W, X, Y, Z) = Sni (5, 6, 11, 12), d(W, X, Y, Z) = (0, 1, 2, 9, 10, 14, 15) (b) FA, B. C. D) = 1n (3, 4, 6, 11, 12, 14). d(A, B, C, D) = ,n (0, 1, 2, 7, 8, 9, 10)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
