Question: this is wrong, please draw plan a hatch the area that you calculate. The floor plan shown is subjected to a uniformly distributed load of

this is wrong, please draw plan a hatch the area that you calculate.

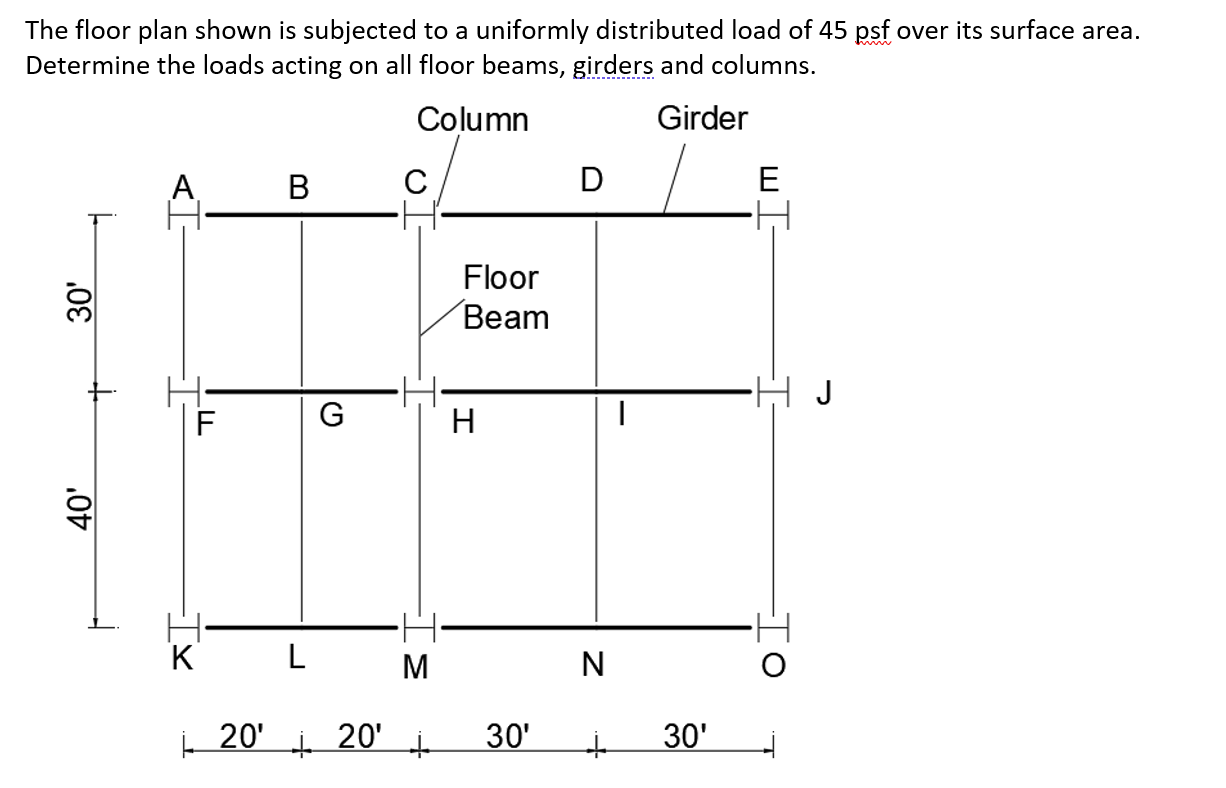

The floor plan shown is subjected to a uniformly distributed load of 45psf over its surface area.
Determine the loads acting on all floor beams, girders and columns.
this is wrong, please draw plan a hatch the area

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
