This practice problem requires to determine A2 values without using a software for the value. Using the HCS12 Microcontrollers and Embedded Systems to this problem. I am having an issue with given question because I do not how to determine a byte value and memory address that relates to A2 I am having an issue with the given question because I do not how to figure out how to determine a byte value and memory address that relates to A2. I need help to solve the given question and it is due at 11:59 pm? Thank you

Does this help?

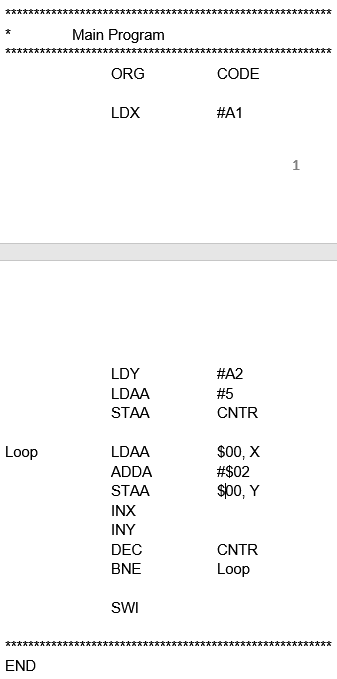

Based on the program above, please answer the following questions:

1. How many bytes of memory are reserved for A2?

2. write the memory address for each of those bytes of A2 in order:

3. After mentally executing the entire program, what are the values in those bytes of A2? Please write down these values in order:

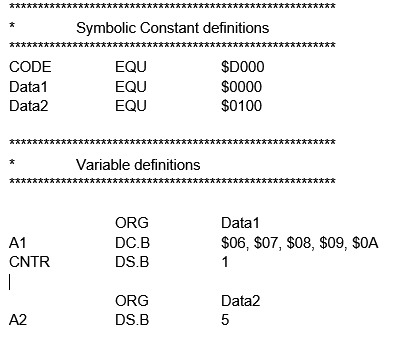

Symbolic Constant definitions CODE Data1 Data2 EQU EQU EQU $D000 $0000 $0100 Variable definitions A1 CNTR ORG DC.B DS.B Data1 $06, $07, $08, $09, SOA ORG DS.B Data2 5 A2
