Question: This problem is about replacing the force system acting on the frame shown below by a resultant force and a couple moment acting at Point

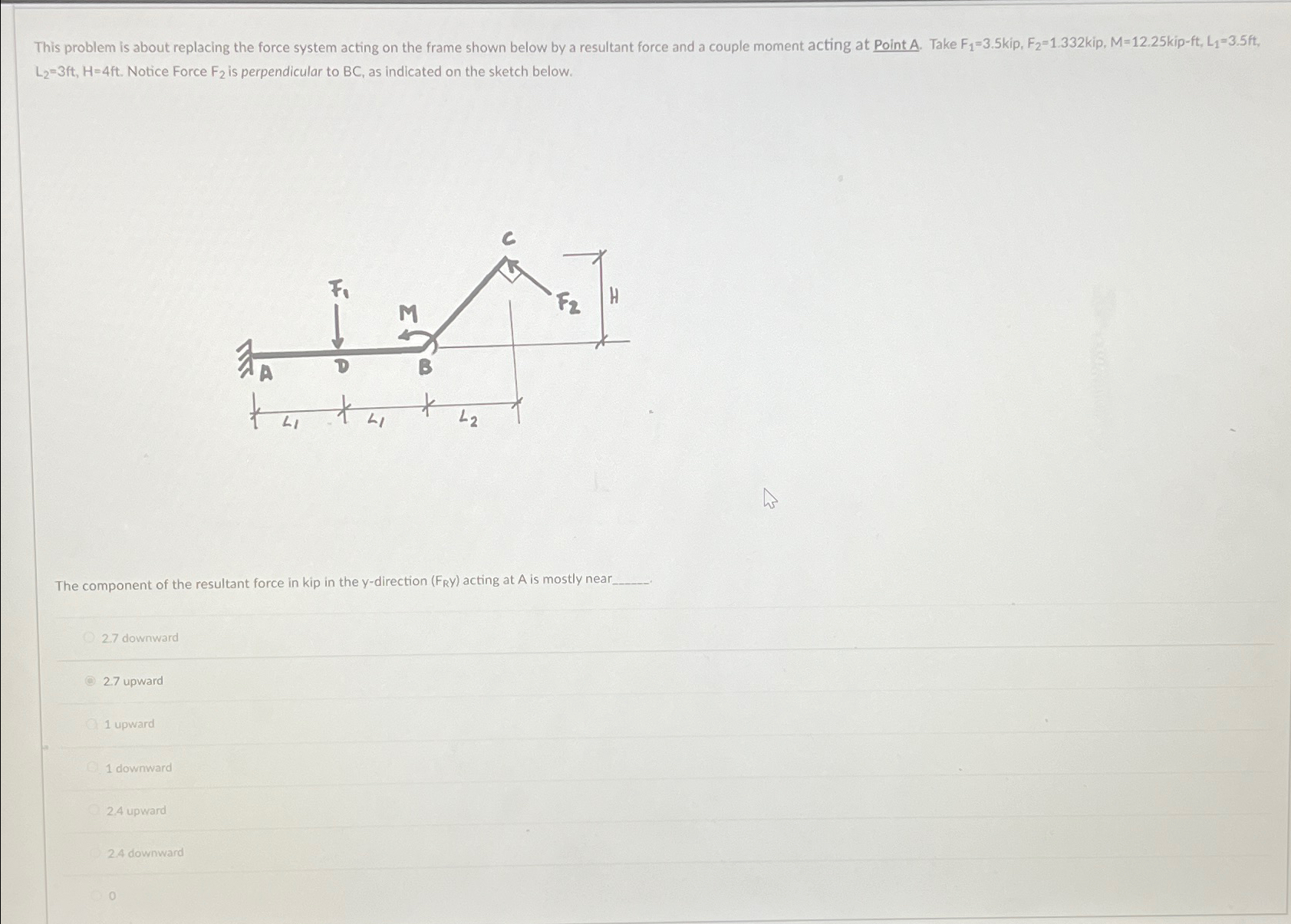

This problem is about replacing the force system acting on the frame shown below by a resultant force and a couple moment acting at Point A. Take F1=3.5kip,F2=1.332kip,M=12.25kip -ft,L1=3.5ft,L2=3ft,H=4ft. Notice Force F2 is perpendicular to BC, as indicated on the sketch below.
The component of the resultant force in kip in the y-direction (FRy) acting at A is mostly near
27 downward
27 upward
1 upward
1 downward
2.4 upward
2.4 downward
